Outdoor Fiber Optic Termination Box 48 Core Wall Mounted Enclosure Box For FTTB
48Core fiber optica Splitter Distribution Box is widely used in the FTTH & FTTB application.. The cabinet is made of high reinforced cold-rolled steel material. The cabinet inner is designed in singal layer rolling panel inside, easy to control, space saving. This product is used for fixing the cable , welding , shunt and storage .it is an important part of FTTH & FTTB.
1. Features:
1. The box is made from high reinforced cold-rolled steel material with powder coated.
2. Water-proof design, sealed by super quality seals, effectively prevent the water penetration.
3. It can be opened for 120 degree, operable sapce is large.
4. Can be used for two 1x24 cores plc splitter.
5. Support OEM or ODM service.
2. Application:
1. FTTH
2. FTTO
3. Fiber to the desk
4. The new-building,extension and rebuilding of optical fiber cable project.

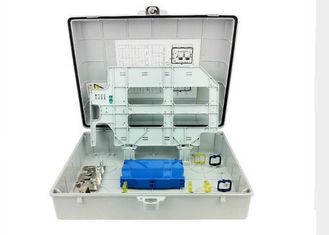

3. Product Show:
4.Technical Standard:
| No. |
Test Item |
Unit |
Requirement |
Test Result |
Test Conclusion |
| 1 |
Mechanical Strength Test of Box Surface |
…… |
Put 500N vertical pressure on every surface of the box for 15min; after unload, the box should not have depredation or permanent deformation |
Conformance to Requirements |
Pass |
| 2 |
Mechanical Strength test of the door |
…… |
Open the door, put 100N vertical pressure on the outermost tip of the door for 15min; after unloading, the box should not have depredation or permanent deformation |
Conformance to Requirements |
Pass |
| 3 |
Tightness test |
…… |
Nozzle diameter 6.3mm, 2.5m-3m away from the tested object, spray water in all directions to the shell, water flow rate: 2.5L/min±5%, duration of at least 3min, no water drop in the box |
Conformance to Requirements |
Pass |
| 4 |
Low-temperature test |
…… |
Test temperature (-40±2)℃, duration of 2h; after the test, the box should not have depredation or permanent deformation |
Conformance to Requirements |
Pass |
| 5 |
High-temperature test |
…… |
Test temperature (60±2) ℃, duration of 2h; after the test, the box should not have depredation or permanent deformation |
Conformance to Requirements |
Pass |
| 6 |
UV Test |
…… |
Under exposure to 60 ℃ and normal temperature of 18w aging test UV light respectively for 8 hours, circulate for 5 times, no discoloration |
Conformance to Requirements |
Pass |
5. Nia Fiber Service:
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
6. Quality Control:
mailto:info@niafiber.com Technology Co., Limited has passed the international quality certification: ISO 9001. We not only have top-ranking quality control departments but also establish complete and reliable quality assurance system. We carry out the system in all procedures and processes of production and management. Moreover, we adopt advanced quality control equipment and first-rate expert team, making sure best products' quality to customers in the whole world.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
