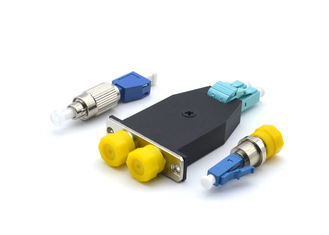

DWDM 1260 - 1600nm Fiber Optic Attenuator Fixed FC - LC Male Fixed Type
Fiber optic attenuator is used for reducing the power of the light in the fiber optic network.
Optic fixed type connector (male to female) attenuator can be selected in need of the project. It is used in the fiber transmission system.
1. Features:
High precision attenuation value
Low additional loss
High durability
High reliability and stability
Connector type: FC, SC, LC, ST, FC/SC or other type
2. Material:
High plastic and metal Housing
Ceramic Zirconium Sleeve
3. Application:
Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment
4. Parameter:
| Item |
Unit |
Parameter |
| Operating Wavelength |
Nm |
1310/1550 |
| Attenuation Range |
dB |
1-10dB(1dB step), 15, 20, 25, 30dB |
| Return Loss |
dB |
PC:≥50 UPC: ≥55 APC: ≥60 |
| Attenuation Tolerance |
dB |
≤1.0 (11-30dB) |
| Working Temperature |
°C |
-25°C~+75°C |
| Storage Temperature |
°C |
-40°C~+ 85°C |
5. Nia Fiber care our life.
