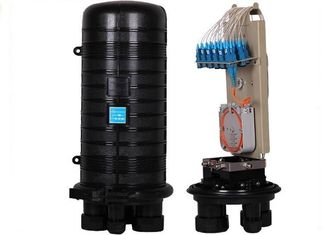

Mechanical Sealing 36 Fiber Optic Splitter Box Dome Type Black Color 5 Ports
1. Features:
Suitable for aerial, duct, and underground,hand-holes application.
Pressure testing valve and earth deriving device
The ambient tempreture ranges from -40°C to +65°C.
Intergrated seal, air tight and water proof
Quick open clamped design, Easy to re-enter
Reliable gasket sealing, reopened repeatedly without changing sealing material
Suitable for ribbon fibers,Ideal for cable repair
RoHS compliant
2. Specifications:
| Dimension |
205φ ×460mm |
| Cable Ports |
5 Ports |
| Diameter of the cable |
8mm-36mm |
| Capacity of FOSC |
Bunchy:48-288 (cores),Ribbion:up to 864(cores) |
| Core Capacity Per Tray |
Bunchy:48 cores,Ribbion:24 pieces |
| Seal Structure |
Heat-shinkable sealing |
| Stye |
Dome |

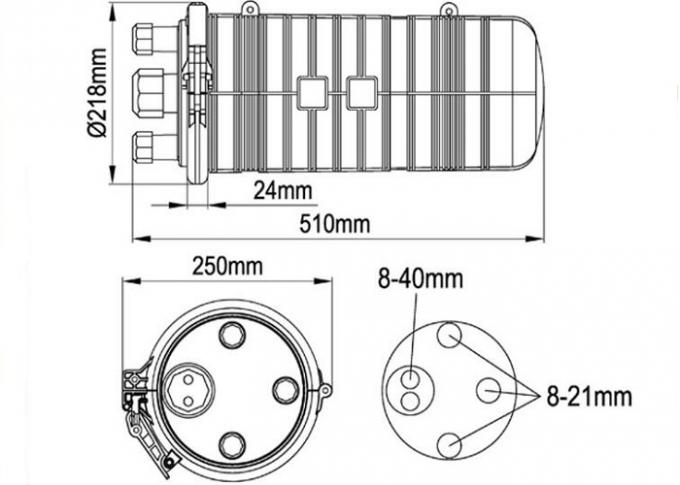

| Outside dimendion(H*D) |
510mm*250mm |
|
Weight
(excluding outside box)
|
3kg-3.6kg |
