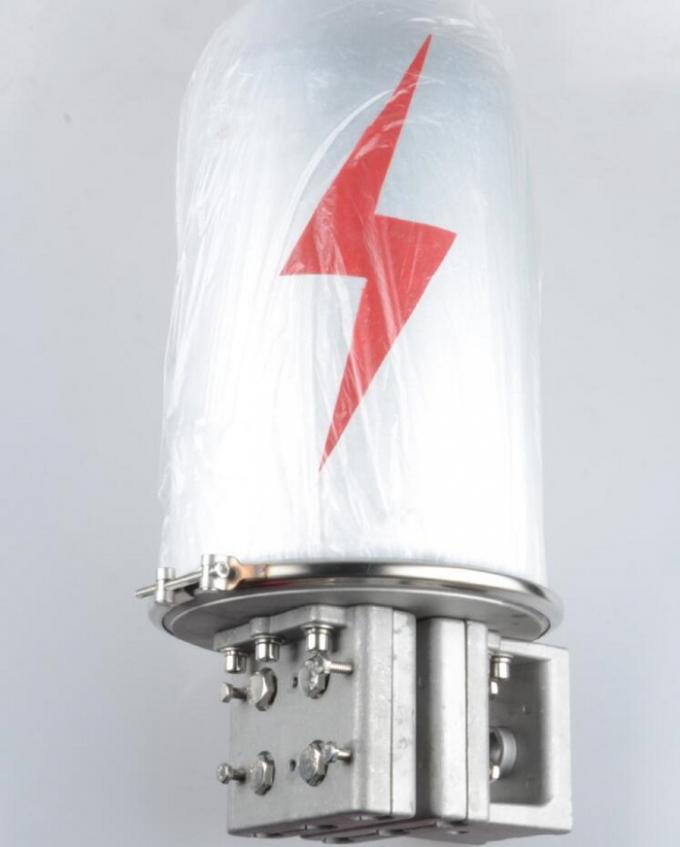

2. OPGW joint closure for tower:
Usage: Suitable for OPGW cable connection protection, has the function for direct connections and divergence connection, which can out of 4 cable, installed in the overhead pole, tower.
Structural features:
a. Joint colsure using aluminum alloy shell, resist-corrosion, high mechanical strength.
b. Joint closure seals with seal ringand silicone, simple operation, open repeatedly, easy maintenance.
c. can make joint closure connect ground according to the requirements ,equipped with the special fixture of towers and pole.
3. Technical parameters:
a. fiber radius of curvature ≥ 43mm.
b. fiber length of the plate to stay ≥ 1500mm.
c. additional attenuation of optical disks to stay≤ 0.01dB.
d. the maximum capacity of fiber optic≤ 144-core optical fiber.
e. suitable temperature range -40 °C ~ +80 °C.
f. flattening performance 2000N/100mm.
g. Weight 6.7kg. h. Overall dimensions 480mm (H) × 200mm (φ).

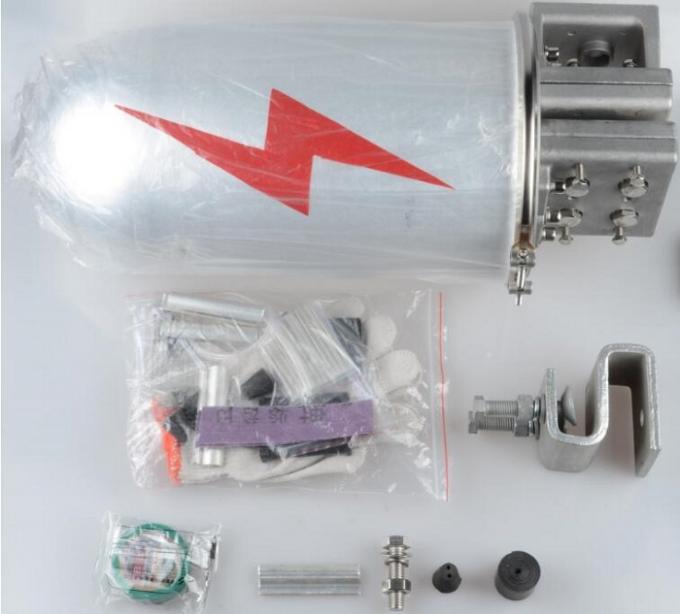

4. OPGW Joint closure Accessories List NO.:
1 Hot expansive tube for connection 1 pc
2 Fiber tube 2-5 rot
3 Protective Optical Fiber Tuber 2-6 set
4 Banding belt 4-12 rot
5 Anti-theft banding 1 rot
6 Adhesive tape 1 roll
7 Electrician tape 1 roll
8 Small rubber 1 pc
9 MDF pressure logo 1 set
10 Abrasive paper 1pc
11 Diameter Adjusting Gasket 1 set
12 M12 center bolt Tower dedicated1 set
13 Logo sign and Coding 1set
14 Oprtation Glove 1set
15 Certificate of product qualification 1pc
16 Instruction of products1pc
5. Nia Fiber Competitive Advantages:
1.Ffiber optic splice closure manufacturer, supply OEM, ODM
2. Protection Grade: IP68
3.Quality certification :ISO9002.ROSH.UL
4.Cooperate with 3M, Thai telecom, Doha airport, Doha telecom, Dubai Telecom and other big projects
5.NXD known as the fiber optic splice closure manufacturer for the excellent products quality, competitive prices, fast delivery and good service
6. Nia Fiber care our life.
