|Temperature:||-40 +60||Relative Humidity:||<= 95%( At 40degree)|
|Cabinet Type:||Double/single Sided||Dimension:||1420*1052*842/1520*1052*465|

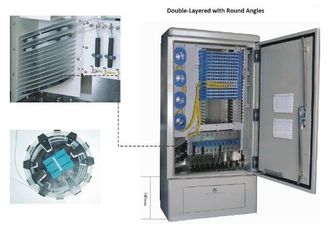

576 FDH Fiber Distribution Hubs Outdoor Optical Cross Connection Cabinet
outdoor optical cross connection cabinet is currently being widely used for cross-connecting outdoor optical cables. This cabinet offers ideal environment for fibers to be spliced and well organized under outdoor environment.
1. The cabinet has functions of cable termination, as well as fiber distribution, splice, storage and dispatch, it has good performance of resisting the open-air environment and can resist severe climatic change and serious working environment.
2. The cabinet is made from quality stainless steel. it has not only excellent performance of anit-erosion and aging resistanc but also pleasing apperance.
3. The cabinet is double-walled with the perormance of natural ventilation. holes are provided at both left and right side at the bottom of the cabinet, fascinating fiber dispatch connection betwwen front and rear.
4. The cabinet has special designed case for reducing the temperature changes inside the cabinets,which is particularly useful under extreme environments.
5. Lock provided on every cabinet ensures the safety of the fibers.
6. Cable fixing cover type that is applicable to common and ribbon optical cable can be adopted for cable reinforcement if required by user.
7. Multi-funtion -various types are available for making different combinations.
8. Disc-shaped direct splice tray(12-24 core/tray) can be used for direct splicing.
9. Accommodates SC, FC and LC ST adapters.
10. Flame-redardant material is adopted for plastic components in the cabinet.
11. All operations are fully done at front of the cabinet so as to facilitate installation, operation, construction and maintenance.
2. Technical Specifications:
1. The protection grade reaches IP65
2. Working with wavelength of 850nm, 1310nm and 1550nm.
3. Pressurization betwwen the frame high voltage protecion earth device and the frame:>3000V(DC)/1 minute without any brakdown or flashover
4. Insulation resistance betwwn the frame high voltage protetion earth device and the rame:>20,000MΩ/500V(DC)
5. Each surface of the cabinet can bear a vertical pressure over 980N
6. The outermost parts of the door can bear a vertical pressure over 200N when the door is open.
7. The fixing position of cable can bear an axial tensile force 1000N,as well as three times of recyclable torsion of +-90℃
8. Mechanical durability: No damage ofr all connectors and adaptors after 500 mating times.
9. The curvature radius>=40mm
3. Options of distribution Units(DU)
Different types of distribution units(hereafter refer as "DU") can be freely chosen to be used within the frame, the option DU are as below:
12 ports splice DU: max capacity of 12 Fc/Sc and 24LC connections.
24 ports splice DU: max capacity of 24 FC9 plastic adapter)/SC and 24 LC connections.
12 prts patch DU: no splice function
12 ports splitter DU: allocate one splitter and offers 12 slots for adapters.
Non-adapter splitter DU: allocate one splitter but with no slots for adapters.
