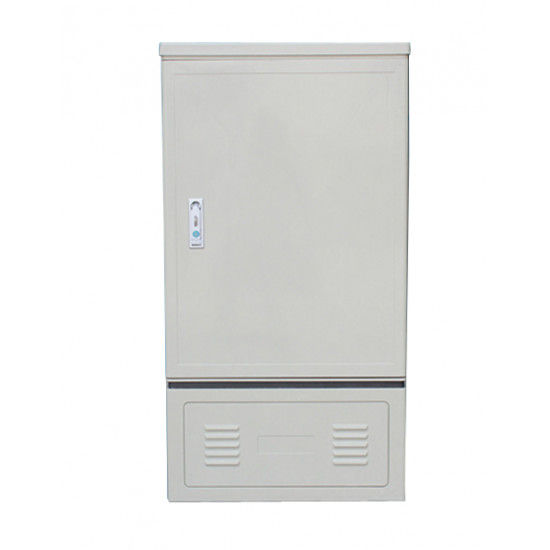

Ground mounted 288FO fiber distribution unit , Fiber Optic Splitter Box
The Cabinet is ground mounted and it can be equipped with 36 Chassis splitters and 28 integrated trays, outside dimensions 1450*750*300mm including the pedestal.
Features:
. The housing is made of SMC.
. Fiber Optic Street Cabinet With very good mechanical properties and very good performance in Anti-aging, resistance to corrosion and long service life.
. Effective grounding wire fixing and protecting facilities.
. Smooth and easy wiring, lock design.
. With good sealing, anti-dust, water-resistance performance
. Chassis Splitter 1:4, 1:8 is applicable.
. 12C integrated tray for 12 splice and 12 patching.
. Solution for Wall-mounted or Pole-mounted is also provided.
Specification:
| Dimension (Including the pedestal) |
1450×750×300mm |
| Number of chassis splitter slots |
36 slots |
| Number of integrated tray slot |
28 slots |
| Capacity of each integrated tray |
12 splices and 12 SC adaptor |
| Splice tray |
Max.12x12FO |
| SplitterType |
Chassis PLC splitter 1:4, 1:8 |
| Lock type |
Special key lock |
| Installation way |
Ground-mounted |
