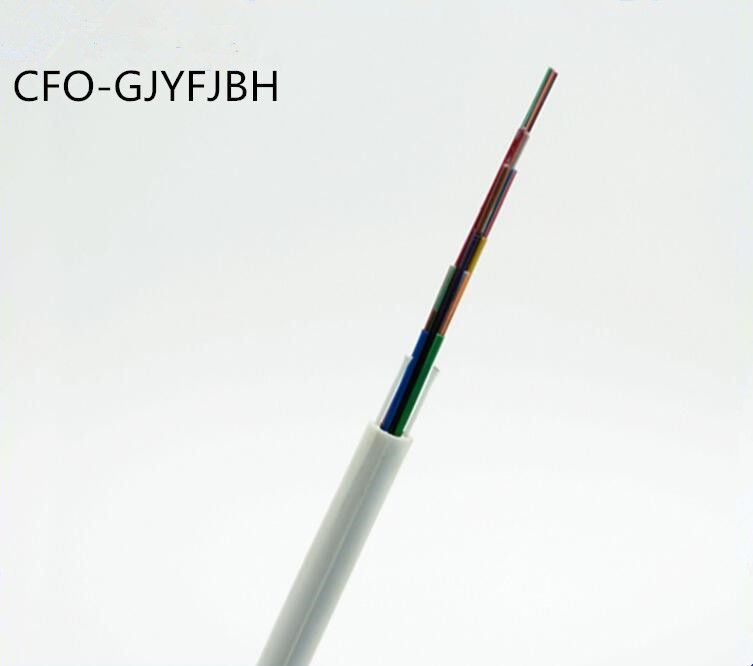

Indoor Multi Fiber Easy Access optical fiber cable GJYFJBH Drop Cable
Features:
Fiber:
1-48 fibers
Tight-buffered fiber.
Strength Member:
Embedded Fiberglass reinforced plastic (FRP)
Outer Jacket:
UV and flame resistant LSZH
Features:
Good mechanical and environmental characteristics, convenient for achieving the branch optical line in cabling.
Flame retardant characteristics meet the requirements of relevant standards.
Soft, flexible, easy to lay and splice, and with big capacity data transmission.
Meet various requirements of market and clients.
Applications:
Used in access network or as access cable from outdoor to indoor in customer premises network.
Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
Optical Characteristics:
| Fiber Type |
Attenuation |
Overfilled launch Bandwidth |
Effective Modal Bandwidth |
10GB/S Ethernet link length |
Min Bending Radius |
| Conditions |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
|
| Unit |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
| G652D |
0.36/0.22 |
|
|
|
|
16 |
| G657A1 |
0.36/0.22 |
|
|
|
|
10 |
| G657A2 |
0.36/0.22 |
|
|
|
|
7.5 |
| 50/125 |
|
3.0/1.0 |
≥500/500 |
|
|
30 |
| 62.2/125 |
|
3.0/1.0 |
≥200/500 |
|
|
30 |
| OM3 |
|
3.0/1.0 |
≥1500/500 |
≥2000 |
≥300 |
30 |
| OM4 |
|
3.0/1.0 |
≥3500/500 |
≥4700 |
≥550 |
30 |
| B1-OM3 |
|
3.0/1.0 |
≥1500/500 |
≥2000 |
≥300 |
7.5 |
| B1-OM4 |
|
3.0/1.0 |
≥3500/500 |
≥4700 |
≥550 |
7.5 |
Specifications:
|
Fiber Count
|
Cable Diameter (mm)
|
Cable Weight (kg/km)
|
Allowable Tensile Load
(N/100mm)
|
Allowable Crush Resistance
(N/100mm)
|
| Short Term |
Long Term |
Short Term |
Long Term |
| 12 |
8.5 |
62 |
200 |
100 |
1000 |
300 |
| 24 |
10.5 |
80 |
200 |
100 |
1000 |
300 |
| 36 |
11.5 |
90 |
200 |
100 |
1000 |
300 |
| 48 |
12.5 |
100 |
200 |
100 |
1000 |
300
|
