GYXTY Steel Uni-Tube Outdoor Armored Fiber Optic Cable With Black Sheath
1. Description

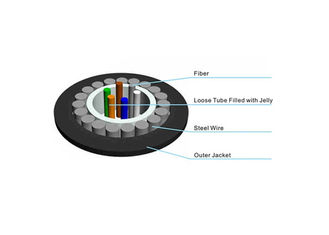

Steel Wire Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, protected with steel wire armor. The whole set cover with a black polyethylene outer jacket.
2. Optical Characteristics
| Items |
Fiber type |
| 50/125um |
62.5/125um |
G.652 |
G.655 |
| Attenuation(+20℃) |
@850nm |
≤3.0dB/km |
≤3.3dB/km |
|
|
| @1300nm |
≤1.0dB/km |
≤1.0dB/km |
|
|
| @1310nm |
|
|
≤0.36dB/km |
≤0.40dB/km |
| @1550nm |
|
|
≤0.22dB/km |
≤0.23dB/km |
| Bandwidth (Class A) |
@850nm |
≥500MHz•km |
≥200MHz•km |
|
|
| @1300nm |
≥500MHz•km |
≥500MHz•km |
|
|
| Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
|
|
| Cable Cut-off Wavelength λcc |
|
|
≤1260nm |
≤1450nm |
3. Technical Parameters
|
Fiber
Count
|
Tubes Count
|
Cable Diameter
(mm)
|
Cable Weight
(kg/km)
|
Bending Radius
Dynamic/Static
(mm)
|
Tensile Strength
Long/Short term
(N)
|
Crush Resistance
Long/Short term
(N/100mm)
|
| 2~12 |
6 |
7.5 |
74 |
20D/10D |
600/1500 |
300/1000 |
| 14~24 |
8 |
8.0 |
80 |
20D/10D |
600/1500 |
300/1000 |
|
Note:
ransport/Storage/Operating Temperature: -40Ċ～+70Ċ.
All data in the table are for reference and subject to change without notification.
|
4. Features:
High tensile streghth of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Good mechanical and environmental performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Steel wire used as the central strength member.
Loose tube filling compound.
100% cable core filling.
5. Our Serivces
Any question will be replied within 24 hours.
Professinal manufacture,Welcom to vist our company.
100% test before shipping.
OEM/ODM is avaliable(As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)
6. FAQ
Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
The cable marking can be as required to printing?
Yes,You have only to give us your marking.
