Attenuation Value: | 1-30dB | Refectance: | UPC=55dB APC=60dB |
---|---|---|---|
Mating Duability: | >1000 Cycle | Operating Band Pass: | Dual Window 1310 And 1550nm |
Connector: | MPO | Polish: | PC UPC APC |

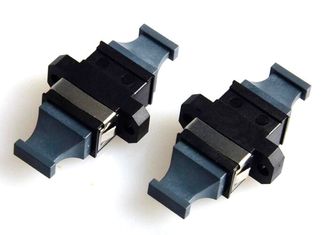

MPO MTP Flange Fiber Optic Adapter Black Bare Fiber Adapter APC Polished
For SM PC/UPC TYPE For APC Type
Attenuation & Tolerance(dB):01~10 ± 0.5 01~10 ± 1.0/11~15 ± 0.75 11~25 ± 1.5/16~20 ± 1.0/21~25 ± 1.5
Durability(dB):0.2 dB max. increase
Wavelength(nm):1310/1550 ± 20 100~250 grams 200~600 grams
Retention force:200~600 grams
Return loss(dB):≥55 (UPC Polishing)/>65 (APC Polishing)
Operating temp:-40°C ~ +75°C
Storange temp:-55°C ~ +85°C
2. Freatures:
Low insertion loss and back reflection loss
Good echangeablility
Good durability
High temperature stability
Standard: Telcordia GR-326-CORE
3. Application:
Telecommunication networks
CATV networks
Active device termination
Local area networks
