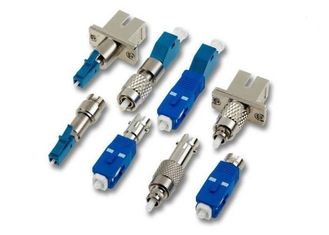

FC / PC Variable Fiber Optic Attenuator 5dB Singlemode / Multimode Female To Male Type
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.
1. Features:
- Fixed Attenuator(Fixed Type FC, SC, ST, LC)
- Female to male type ( FC, SC, ST, LC)
- In-Line Attenuator(Fused and Fiber Jumpers Type)
- High Return Loss(In-Line and High RL Type)
- Exact and Stable Attenuation(Variable Type)
2. Application:
- Testing equipment
- Fiber optical CATV
- Fiber optical sensor
- Fiber optical telecommunication system
3. Specification:
| Item |
Parameter |
| Model |
Fixed, Female & Male, In-line, Variable |
| Operating Wavelength |
SM:1310/1550nm MM: 850/1300nm |
| Attenuation Range |
1~30dB |
| Return Loss |
PC:≥50dB UPC: ≥55dB APC: ≥60db |
| Attenuation Tolerance |
≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Maximum Optical Input Power |
1000mW |
| Polarization Dependent Loss |
≤0.1dB |
| Working Temperature |
-40°C~+75°C |
| Storage Temperature |
-40°C~+ 85°C |
| Humidity |
95%RH |
4. Ordering Information: ATT-ABCDEFG
| ATT- |
A |
B |
C |
D |
E |
F |
G |
| Attenuator |
Adapter -A |
Ferrule |
Adapter-B |
Ferrule |
Mode |
Attenuation |
Wavelength |
| LP=LC/UPC |
M=Male |
LP=LC/UPC |
M=Male |
SM= Single Mode |
1dB |
31=1310nm |
| LA=LC/APC |
F=Female |
LA=LC/APC |
F=Female |
MM=Multi-mode |
… |
55=1550nm |
| FP=FC/UPC |
|
FP=FC/UPC |
|
|
9dB |
85=850nm |
| FA=FC/APC |
|
FA=FC/APC |
|
|
10dB |
30=1300nm |
| SP=SC/UPC |
|
SP=SC/UPC |
|
|
15dB |
|
| SA=SC/APC |
|
SA=SC/APC |
|
|
20dB |
|
| ST=ST/UPC |
|
ST=ST/UPC |
|
|
25dB |
|
| MU=MU/UPC |
|
MU=MU/UPC |
|
|
30dB |
|
