Indoor 12 Cores Fiber Optical Distribution Box Wall Mounting Or Pole Mounting

I'm Online Chat Now

Indoor 12 Cores Fiber Optical Distribution Box Wall Mounting Or Pole Mounting

China Indoor 12 Cores Fiber Optical Distribution Box Wall Mounting Or Pole Mounting supplier
Indoor 12 Cores Fiber Optical Distribution Box Wall Mounting Or Pole Mounting supplier Indoor 12 Cores Fiber Optical Distribution Box Wall Mounting Or Pole Mounting supplier Indoor 12 Cores Fiber Optical Distribution Box Wall Mounting Or Pole Mounting supplier

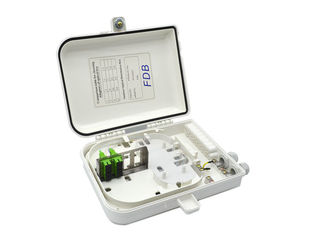

Large Image :  Indoor 12 Cores Fiber Optical Distribution Box Wall Mounting Or Pole Mounting

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: Rohs
Model Number: CFO-Distribution Box

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: 1pc middle box, 6pcs in one carton
Delivery Time: 3days for samples; 7-15days for bulk order
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Color: Grey White Material: ABS / PC
MAX Core: 12 Core Application Cable: Outdoor Or Indoor
Working Temperature: -40℃~+60℃ Working Humidity: ≤95%(+40℃)
Protection Grade: IP 65 Installation: Wall Mounting Or Pole Mounting



Indoor 12 Cores Fiber Optical Distribution Box Wall Mounting Or Pole Mounting



Description:



The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.





Features:



• Total enclosed structure.

• Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.

• Clamping for feeder cable and drop cable, fiber splitting, splicing, fixation, storage, distribution...etc all in one.

• Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.

• Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.





Applications:



Widely used in FTTH access network.

• Telecommunication Networks

• CATV Networks

• Data communications networks

• Local Area Networks(LANs)





Specification:



Color Grey White
Installation Wall Mounting or Pole Mounting
Protection Grade: IP 65
Application Adapter SC/APC or SC/UPC
Application Cable Outdoor or indoor
MAX Core 12 Core
Adapter and Pigtail With or Without is optional
Material ABS / PC
Dimensions 485mm x 200mm x 40mm (W x H x D)
Weight 1.5KG
Working Temperature -40℃~+60℃
Working Humidity ≤95%(+40℃)
Atmospheric Pressure 70Kpa~106Kpa
Box door opening angle ≥180°
Grounding voltage level ≥3000V(DC)/10mA/1 min
Insulation Resistance 2X104MΩ/500V
