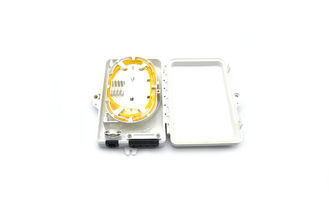

FTTH 4 Core Optical Fiber Distribution Box / Cable Terminal Box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1). Total enclosed structure, be in nice shape.
2). Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP66.
3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4). Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
5). Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Application:
· FTTH, FTTB, FTTC
· Telecommunication Network
· Local Area Network
· CATV
Environmental conditions:
1, Operating Temperature: -40 ° ~ +60 ° C;
2, Relative humidity: 93% (at +40 ° C);
3, Atmospheric pressure: 62kpa ~ 101kpa (approximate altitude of 0 to 5,000 m)
4, The insertion loss: ≤ 0.35dB;
5, Return loss: ≥ 50dB;
6, Plug durability:> 1000 times
7, Insulation resistance: ≥ 1000MΩ/500v (DC)
8, Pressure:> 3000v (DC) / 1min no breakdown, no flashover. ABS + PC material
Our Service
Nia Fiber specializes in manufacturering of FTTH products and fiber optic cables. Nia Fiber provides connectivity solutions for some of the largest distributors and OEM accounts in the world. We provide both standard and custom solutions for our customer's specific requirements.
Total Quality is the guiding principle of Nia Fiber's business life. It requires each of us, individually and in teams, to understand, anticipate, and surpass the expectations of our customers. Total Quality demands continuous improvement in all our processes, products, and services. Our success depends on our ability to learn from experience, to embrace change, and to achieve the full involvement of all our employees. The company's expertise assures that each customer will receive the highest quality of products and service on each and every product. By purchasing Nia Fiber products, our customers can be assured that they are getting components that are fully warranted.
All products can be custom manufactured to fit customer requirements.If you need something special, Nia Fiber can design and manufacture a custom fiber optic cable or cable assembly to meet your requirements.
Why choose us
1): Reliable---we are the real company, we dedicate in win-win
2): Professional---we offer the products exactly you want
3): Factory---we have factory, so have reasonable price
How about the shipping cost?
If your goods is not large, we can send goods to you via counier, such as FEDEX, DHL,we cooperated with them for long time, so we have good price.If your goods is large, we will send to you via sea, we can quote the price to you, then you can choose whether use our forwarder or yours.
How about the price?Can you make it cheaper?
The price depends on the item your demand(quantity)
Beat quotation after receving full description of the item you want.
How about the sample time?What is the payment?
Sample time:3~10days after order & samples confirmed.
T/T,30% deposit, and balance is after the order is finished. Also we accept the PAYPAL, West Union.
FRQ:
1. What Products Do You Provide?
Our main products for FTTH include fiber optic patch panels, fiber optic distribution boxes, fiber optic splicing closures, PON boxes, street cabinets, patch cords/pigtails, fiber optic adapters/connectors and PLC splitters. We also copper network products: terminal block, patch panel, distribution box and cross connection cabinet etc.
2. How to Guarantee Your Product Quality?
(1). Strengthen the employees'awareness of product quality through training courses
(2). Adopt high quality materials for manufacturing
(3). Examine the products during every procedure of manufacturing
3. What Kind of Package Will You Offer?
The method of package depends on customers'requirement, such as packed in plastic bags, wooden box,etc.
4. What Service Can You Offer?
(1). We can offer a discount depending on the quantity ordered.
(2). Other services depend on customers'requirements.
(3). We also accept OEM manufacturer - print customer's logo on product free.
5. What Action Will You Take if There Are Some Product Problems?
If there are defective ones in the batch of products during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
