PE Sheath 12 Core Optical Fiber Cable Air Blow Super Mini Fiber Optic Cable
12 Core Nia Fiber PE Sheath Air Blown Super Mini Fiber Optic Cable
The Super Mini uni-tube blown cable is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be blown into the microduct of 5.0/3.5mm. The fibres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability to cushion the fibres, in addition, the resin can be easily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction. The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the high level of mechanical protection, but also the perfect blowing performance.
1. Air Blow Super Mini Fiber Optic Cable(ABF Cable) Advantage:
Special complex material loose tube, reduce the shrink of tube in cold temperature.
Accurate fibre length balance, stable mechanical and temperature performance.
Particular technique control, prevent sheath form crinkling during installation.
Structure Innovation in sheath, enhancing the blowing performance.
2. Air Blow Super Mini Fiber Optic Cable(ABF Cable) Specifications:
| Cable Type |
Central Loose Tube Cable |
| Fiber Count |
2~4 |
6~12 |
24 |
| Nominal Overall Diameter |
2.0±0.1mm |
2.3±0.1mm |
2.8±0.1mm |
| Weight |
4.0 kg/km |
5.0 kg/km |
7.5 kg/km |
| Max. Tensile Strength |
40N |
50N |
100N |
| Cable Fiber Attenuation (G.652D) |
0.35dB/km max @1310nm 0.22dB/km max @1550nm |
| Max. Crushing force |
600N/100mm |
| Estimated blowing length |
12bar Pressure air, 5.0/3.5mm, 7.0/5.5mm micro duct, ≥800m |

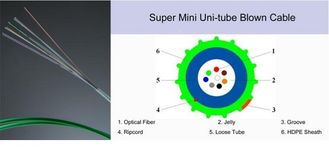

3. Air Blow Super Mini Fiber Optic Cable( ABF Cable) Product Show:
4. Nia Fiber Sevice:
Nia Fiber was founded in 2010 , starting with power cable and more than 6-year experiences in FTTH production, has provides range of products for Structured Cabling System ( SCS ).
Carfiber is located in Shenzhen, China with one facility around 5000 square meters. Based on high quality manpower and professional experiences in this industrials . We have the confidence and ability to design and manufacture various products for customers.
Own R&D team to improve our products according to real need from End User, your request is our goal!
Nia Fiber can be your trusted consultant to handle Data Center, Enterprise and Industrial intelligent structured cabling system.
we sincerely hope to expand the cooperation with all the customers both at home and overseas,Each member of our term is dedicated to excellence and encouraged to be creative and to take the initiative.above all we strive to service your requirements in such a way that you, our partner will feel nice about doing business with us, we are looking forward to geting any requirement from you.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
