4 Core Optical Fiber Cable Self - Supporting Black / White LSZH Sheath For FTTH
1. Description

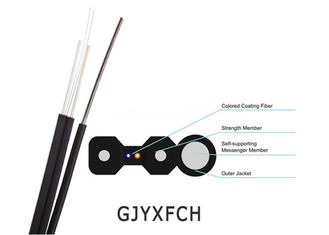

The optical fiber unit is positioned in the centre. Two parallel metallic strength member or Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
2. Optical Characteristics
| Items |
Fiber type |
| G.652 |
G.657 |
| Attenuation(+20℃) |
@1310nm |
≤0.45dB/km |
≤0.45dB/km |
| @1550nm |
≤0.30dB/km |
≤0.30dB/km |
| Cable Cut-off Wavelength λcc |
≤1260nm |
≤1260nm |
3. Technical Parameters
| Fiber Count |
Cable Diameter
(mm)
|
Cable Weight
(kg/km)
|
Tensile Strength
(N/100mm)
|
Crush Resistance
(N/100mm)
|
| Short Term |
Long Term |
Short Term |
Long Term |
| 1-4 |
5.2*2.0 |
18 |
600 |
300 |
2200 |
1000 |
4. Features:
Small size, light weight, compact construction, easy to strip without tool for its special groove design, easy to install.
Single steel wire as the additional strength member ensures good performance of tensile strength.
Optical fiber(s) is placed between two strength members, with excellent crush and tensile resistance.
Excellent anti-bending property when G.657 bending insensitive fiber is applied.
Used as drop cable from outdoor to indoor in access network or user premise network.
Flame retardant LSZH jacket for indoor use.
5. Our Serivces
Any question will be replied within 24 hours.
Professinal manufacture,Welcom to vist our company.
100% test before shipping.
OEM/ODM is avaliable(As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)
6. FAQ
Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
The cable marking can be as required to printing?
Yes,You have only to give us your marking.
