2 - 144 Fiber Optic Outdoor Cable Black Sheath Strength Member Fiber Optic Cable

I'm Online Chat Now

2 - 144 Fiber Optic Outdoor Cable Black Sheath Strength Member Fiber Optic Cable

China 2 - 144 Fiber Optic Outdoor Cable Black Sheath Strength Member Fiber Optic Cable supplier

Large Image :  2 - 144 Fiber Optic Outdoor Cable Black Sheath Strength Member Fiber Optic Cable

Product Details:

Place of Origin: China
Certification: IS9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Kilometer/Kilometers
Packaging Details: 2kilometer packing
Delivery Time: 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 5000 Kilometer/Kilometers per Month
Contact Now
Detailed Product Description
Operating Temperature: -40~+70℃ Fiber Type: G652D Or As Requested
Cable Type: GYFTY Cable Stength Member: FRP
Sheath Material: PE Or As Requested Sheath Color Force: Black
Fiber Capacity: 2 To 144 Fibers Cable Structure: Non-armored Strength Member Non-armoured



GYFTY Fiber Optic Outdoor Cable Non - Armored Strength Member Fiber Optic Cable

1. Description

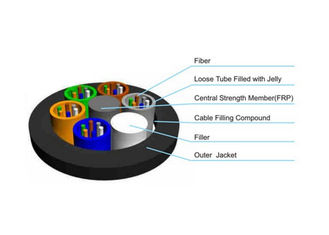

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After the cable core is filled with the filling compound to protect it from water ingress. the cable is completed with a PE sheath.


2. Optical Characteristics



Items Fiber type
50/125um 62.5/125um G.652 G.655
Attenuation(+20℃) @850nm ≤3.0dB/km ≤3.3dB/km
@1300nm ≤1.0dB/km ≤1.0dB/km
@1310nm     ≤0.36dB/km ≤0.40dB/km
@1550nm     ≤0.22dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500MHz•km ≥200MHz•km
@1300nm ≥1000MHz•km ≥600MHz•km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc     ≤1260nm ≤1450nm


 3. Technical Parameters



Fiber

Count

Tubes Count Cable Diameter
(mm)
Cable Weight
(kg/km)

Bending Radius

Dynamic/Static
(mm)

Tensile Strength

Long/Short term
(N)

Crush Resistance

Long/Short term
(N/100mm)

2~36 6 10.7 108 20D/10D 600/1500 300/1000
38~72 6 11.6 140 20D/10D 600/1500 300/1000
74~84 7 12.3 176 20D/10D 600/1500 300/1000
86~96 8 13.0 200 20D/10D 600/1500 300/1000
98~108 9 13.8 226 20D/10D 600/1500 300/1000
110~120 10 14.7 250 20D/10D 600/1500 300/1000
122~132 11 15.4 280 20D/10D 600/1500 300/1000
134~144 12 16.3 280 20D/10D 600/1500 300/1000

Note:

Transport/Storage/Operating Temperature: -40Ċ~+70Ċ.

All data in the table are for reference and subject to change without notification.



4. Features:


Good mechanical and environmental performance.

Comply with standard YD/T 901-2009 as well as IEC 60794-1.

High strength loose tube that is hydrolysis resistant.

Special tube filling compound ensure a critical protection of fiber.

Crush resistance and flexibility.

PE sheath protects cable from ultraviolet radiation.

The following measures are taken to ensure the cable watertight:

     Single Fiber Reinforced Plastic as the central strength member.

     Loose tube filling compound.

     100% cable core filling.

 2 - 144 Fiber Optic Outdoor Cable Black Sheath Strength Member Fiber Optic Cable
5. Our Serivces


Any question will be replied within 24 hours.
Professinal manufacture,Welcom to vist our company.
100% test before shipping.
OEM/ODM is avaliable(As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)

6. FAQ


Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
The cable marking can be as required to printing?
Yes,You have only to give us your marking.
