24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex

China 24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex supplier
24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex supplier 24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex supplier

Large Image :  24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: Rohs
Model Number: MPO MTP cassette

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: 1pc bag
Delivery Time: 3-5days for sample, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union;paypal
Supply Ability: 3000pcs/day
Contact Now
Detailed Product Description
Model Number: MPO/MTP LGX Cassette Cores: 24 Cores
Cable: Bunch Cable Return Loss: 55dB
Insertion Loss: 0.7dB Type: Male

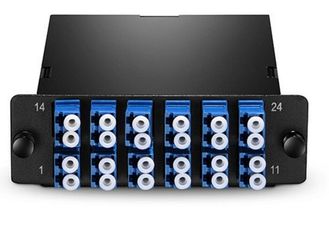

24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex





Nia Fiber MTP LGX Cassette that provides secure transition between MTP and LC discrete connectors, and comes pre-terminated with 12 LC connections on the front side and one 12 fibers MTP connector at the rear. Inside the MTP cassette there is one 12 fibers harness that breakout from the LC connector to the MTP connector, giving a quick and easy plug-and-play data solution.


1. Features:

1. Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes
2. 100% factory tested with test results included with each cassette
3. Plug-n-play cassette eliminates the need for field termination or splices
4. Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes
5. MPO/MTP adapter swivel allows for easy cable routing and proper bend radius
6. All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back



24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex

2. Benefits:

1. Eliminate termination errors, Min installation time
2. Each cable is 100% tested for low insertion loss and back reflection
3. Optimized performance - Elite MTP and discrete premium connector
4. Support 40G PLRL4 PSM in applicable parallel optics networks
5. Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard



24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex

24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex

3.  Applications:

1. Factory terminated and 100% tested

2. Elite insertion loss of 0.35dB maximum

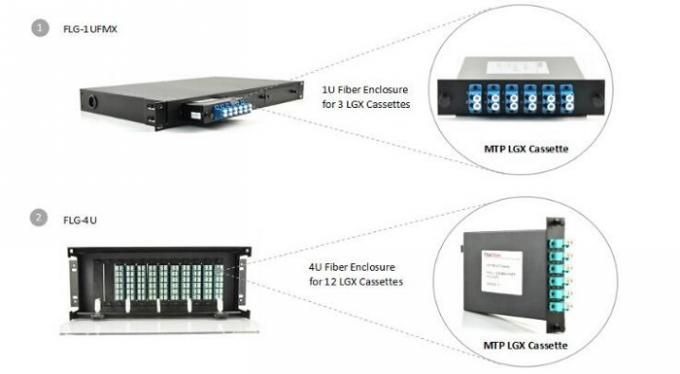

3. Available with LGX Fiber Enclosure

4. Data Center Solution

5. Storage Area Network

6. Main and Equipment Distribution Areas

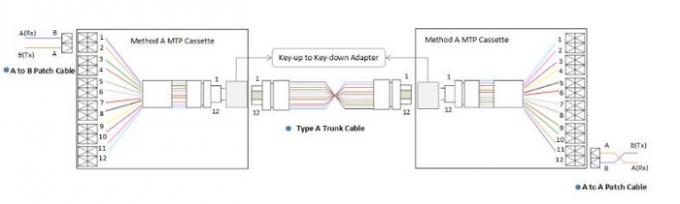

4. Method A Cassette Illustration:

24 Fiber MTP / MPO Patch Cord Single Mode 12 Port Fiber Patch Panel LC UPC Duplex



mailto:info@niafiber.com Technology Co., Limited has passed the international quality certification: ISO 9001. We not only have top-ranking quality control departments but also establish complete and reliable quality assurance system. We carry out the system in all procedures and processes of production and management. Moreover, we adopt advanced quality control equipment and first-rate expert team, making sure best products' quality to customers in the whole world.



mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.



We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
