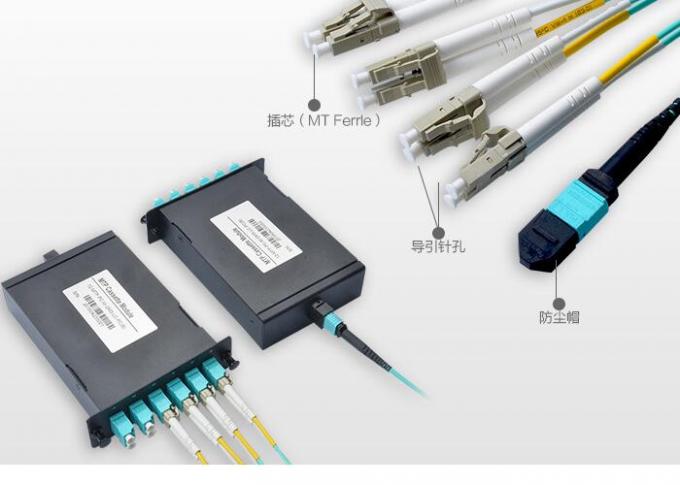

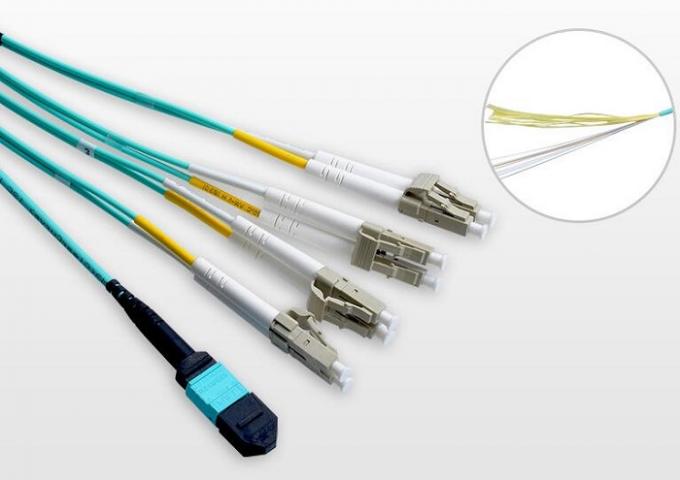

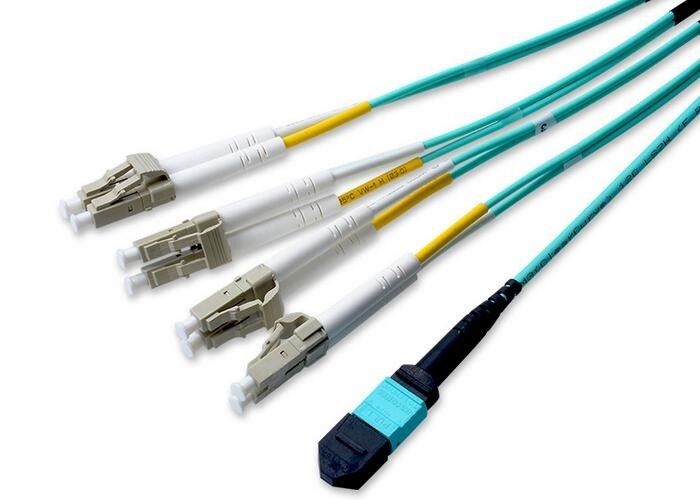

40G -QSFP Mould MPO Fiber Connector , 2M Multimode OM3 MPO Breakout Cable
OM3/OM4 fiber cable, plus the connectors from US Conec.
All the production is done in Necero factory facility to ensure the system performance and quality.
Modular and snapping fit design, which offer great convenience to installers at the site for installations as well as future maintenances and services.With the universal system and MPO interface, it will provide trouble-free connection between fiber cable and equipments as well as ensure the channel has the best flexibility, compatibility and reliabilit
1. Features:
Low insertion loss
High return loss
High reliability and stability
Excellent exchangeability and durability
FC, LC, SC, ST, MU, MTRJ,DIN, D4, SMA, ESCON, FDDI, MPO etc. is available
PC, UPC or APC polishing
Single mode and multi-mode available
Simplex, duplex or fan-out available
Ø0.9, Ø2.0, Ø3.0 available
Length: 1m, 1.5m, 2m or customized
PVC, LSZH or hytrel available
Fully compliant with the standards of Telcordia GR-326-CORE and RoHS
2. Application:
CATV system
Optical fiber communication
Testing equipment
FTTX
Fiber optic network convergence
Optical fiber access network
Fiber data transmission
Optical fiber video transmission
Fiber multimedia system
Fiber ethernet
Photoelectric conversion system
3. Specification:
| Fiber Type |
Connector Type |
Polishing Type |
IL |
RL |
| Single mode |
FC,SC,LC,ST,DIN,D4,MU |
PC |
<0.2dB |
>50dB |
| FC,SC,LC,ST,DIN,D4,MU |
UPC |
<0.2dB |
>55dB |
| FC,SC,LC,ST,DIN,D4,MU |
APC |
<0.2dB |
>60dB |
| MTRJ,MPO,ESCON,FDDI |
/ |
<0.5dB |
>35dB |
| Multi mode |
FC,SC,LC,ST,DIN,D4,MU |
PC |
<0.3dB |
>30dB |
| MTRJ,MPO,ESCON,FDDI |
/ |
<0.5dB |
>30dB |
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide fiber optic patch cord, fiber optic connector, fiber optic adaptor, FTTH fast connector, patch cord production line equipment and fiber optic patch panel. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care our life.
