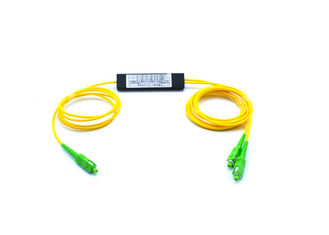

1310/1550nm Dual Window 50/50 Ratio SC/APC ABS Box Type 1x2 FBT Coupler 1*2 FBT FIber Optic Splitter
Nia Fiber can supply various FBT couplers including 1x2, 1x3,1x4,1x8,1x16,1x32 and customerized products.
1. Features:
Low insert loss
Single Fusion design
Uniform power splittering
Compact size
High stablity and reliability
Standard: Rohs compliants
2. Applications:
CATV system
Telecommunication systems
Digital, Hybird and AM-Vedio systems
Fiber sensor
Monitoring systmes
3. Parameter:
Table-1
| Parameter |
1x2 |
| Operating Wavelength (nm) |
1310/1550 |
| Operating bandwidth (nm) |
±40 |
| Grade |
P |
A |
|
Insert Loss
(dB)
Coupling ratio:
|
1/99 |
≤22.5/0.25 |
≤23.5/0.35 |
| 2/98 |
≤18.8/0.3 |
≤19.5/0.4 |
| 3/97 |
≤17.0/0.35 |
≤17.8/0.45 |
| 5/95 |
≤14.6/0.4 |
≤15.5/0.5 |
| 10/90 |
≤11.2/0.75 |
≤12.0/0.8 |
| 20/80 |
≤7.9/1.3 |
≤8.4/1.4 |
| 30/70 |
≤6.0/1.9 |
≤6.3/2.1 |
| 40/60 |
≤4.7/2.7 |
≤4.9/2.9 |
| 50/50 |
≤3.6 |
≤3.8 |
| Excess Loss(dB) |
0.07 |
0.1 |
| PDL(dB) |
≤0.15 |
≤0.20 |
| Return Loss(dB) |
>50 |
| Directivity(dB) |
≥55 |
| Operating Temperature(ºC) |
-40~85 |
| Storage Temperature(ºC) |
-40~85 |
| Connector |
SC, FC, LC or customerized |
Notes: The values are all tested at +23ºC without connectors.
Table-2
|
Configuration
|
1×2 |
1×3 |
1×4 |
1×8 |
1×16 |
1x32 |
| Center Wavelength (nm) |
1310, 1490, 1550 |
| Operating Wavelength (nm) |
±40 |
| Insert Loss |
Please refer to the coupling ratio |
| Typical Excess Loss |
0.08 |
0.15 |
0.3 |
0.45 |
0.6 |
0.75 |
| Return Loss |
≥55 |
Notes: The values are all tested at +23ºC without connectors.
