Home ProductsFiber Optic PLC Splitter

Bare Fiber Optic FBT Coupler 1*2 , Fiber Optic 1x16 plc splitter Widely Used

I'm Online Chat Now

Bare Fiber Optic FBT Coupler 1*2 , Fiber Optic 1x16 plc splitter Widely Used

China Bare Fiber Optic FBT Coupler 1*2 , Fiber Optic 1x16 plc splitter Widely Used supplier
Bare Fiber Optic FBT Coupler 1*2 , Fiber Optic 1x16 plc splitter Widely Used supplier Bare Fiber Optic FBT Coupler 1*2 , Fiber Optic 1x16 plc splitter Widely Used supplier

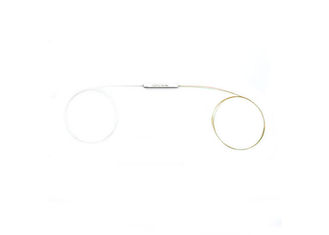

Large Image :  Bare Fiber Optic FBT Coupler 1*2 , Fiber Optic 1x16 plc splitter Widely Used

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: CE Rohs
Model Number: FBT

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1pc in blister box
Payment Terms: T/T, Western Union, MoneyGram, Paypal;
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description



Bare Fiber Optic FBT Coupler 1*2 , Fiber Optic 1x16 plc splitter Widely Used



Nia Fiber can supply various FBT couplers including 1x2, 1x3, 1x4, 1x8, 1x16, 1x32 and customerized products.





Features



*Excellent Mechanical,Small Size

*High Reliability

*Low insertion Loss and low Polarization Dependent loss

*High channel counts

*Excellent Environmental Stability and Widely Used



Applications



*Cable television (CATV)

*Local area networks (LAN)

*Test equipment

*Passive optical networks(PON)



Specifications





Technical Specs for PLC Splitter with Connector
Item 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Max. Insertion Loss (dB) ≤4.1 ≤7.4 ≤10.5 ≤13.8 ≤17.1 ≤20.4 ≤23.8
Uniformity (dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss (dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.0 ≤1.0 ≤1.2
Return Loss (dB) ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 ≥50
Directivity (dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 ≥55

Item 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Fiber Type G.657.A
Working Wavelength 1260nm~1650nm
Max. Insertion Loss (dB) ≤4.4 ≤7.7 ≤10.8 ≤14.1 ≤17.4 ≤20.7 ≤24.1
Uniformity (dB) ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤2.0 ≤2.5 ≤2.5
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Wavelength Dependent Loss (dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.0 ≤1.0 ≤1.2
Return Loss (dB) ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 ≥50
Directivity (dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB.










Nia Fiber Services:



  1. We supply professional offer. Provide detailed products test report and related specifications.
  2. We provide professional technology support to meet the requirements of customers.
  3. Within 12 hours of the corresponding customer inquiry, our commissioners will promptly get in touch with the customers.



After Services:



Shenzhen Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you.We are equipped with the good after service department and never escape our responsibility.



Bare Fiber Optic FBT Coupler 1*2 , Fiber Optic 1x16 plc splitter Widely Used
