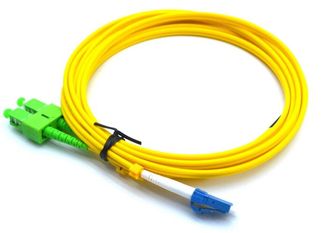

3.0MM Simplex Duplex Fiber Optic Patch Cord LSZH Jacket G657A2 Fiber in GPON/EPON box
The fiber optic patch cord/jumper cable is made by 0.9mm, 2.0mm or 3.0mm PVC/LSZH sheath simplex or duplex indoor cable and then is completed with SC. ST. FC or LC connectors.
The fiber optic patch cords/jumpers provide a stable and reliable connection both SM or MM and single or dual fiber.
The different polishing methods: PC, UPC and APC is optional.
Environmental Reliability Test:
The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
Technical parameters:
1. connector types: FC, SC, LC, STand etc
2. The min bending radius: 3.8 cm
3. Operating temperature range: - 40 ~ 85 °C
4.connector materials: ceramic plug core
5. Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm
6. Repeat plug: < 0.25 dB, each 500 times plug
7. Min reflection loss: 20 db
8. Max return loss:-50dB
Application:
1. optical fiber communication system
2. optical access network
3. Optic-fiber Date Communication
4. Optical-fiber CATV
5. A local area network (LAN)
6. Test Equipment
Specification:
| Mode |
SM |
MM |
| Polish |
UPC |
APC |
PC |
| Insertion Loss |
Typical ≤0.25dB
Maximum ≤0.3dB
|
≤0.25dB |
| Return Loss |
≥50dB |
≥65dB |
≥35dB |
| Interchangeability |
≤0.2dB |
| Repeatability |
≤0.1dB |
| Durability |
≤0.2dB (1000 times mating) |
| Tensile Strengh |
> 10kg |
| Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
| Humidity |
≤0.2dB (+25+65 93 R.H.100 hours)
|
