3 Meters Fiber Optic Pigtails Aqua OM2 / OM3 FC 12 Jacketed MM5010Gb For FTTH
Multi mode Fiber Optic Pigtals
Fiber types: OM1, OM2 and OM3
Construction of secondary protection: tight or loose
Available in 12 colours of primary and secondary protection
1. Features
Low insertion loss, high return loss
Good repeatability & mutual insert performance, >1000 times
Good temperature stability & reliable
Working Temperature: -40°C~+75°C
We offer the OEM, ODM or customized manufacturing ways
2. Applications
telecommunications & communication system;
broadband & optical fiber access network;
om3 sc fiber optic pigtail in FTTH, FTTB, FTTX network
Connection between the optical transmission network and the optical transmission equipment
3. Specifications
| Parameter |
| Item |
Mode Type |
PC |
SPC |
UPC |
APC |
| Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.15dB |
| MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
| Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
| MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
| Repetition Test |
Additional Loss≤0.1dB,Return Loss Variability<5dB |
| Temperature Stability('-40°C~85°C) |
Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature |
-40°C+~75°C |
| Storage Temperature |
-40°C+~85°C |
| -Option for Cable Diameters:0.9mm , 2.0mm ,3.0mm & others |
| -Type:simplex and duplex |
| -Material Type: PVC , Hytrel , LSZH , OFNP , OFNR |

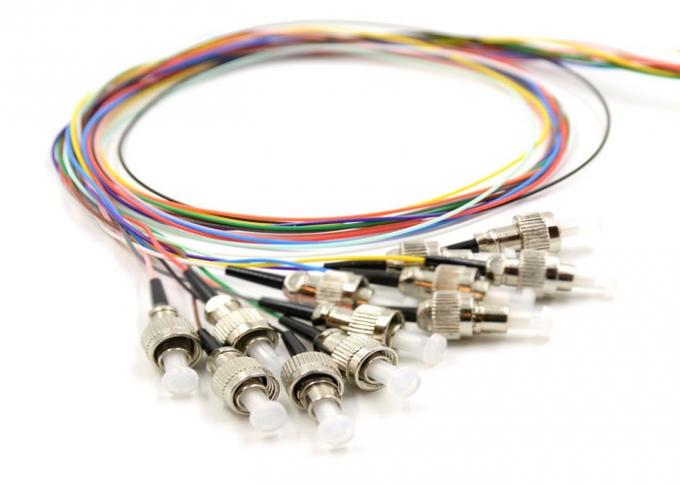

4. Product Show
5. Nia Fiber Service
Nia Fiber always focuses on reliable quality development. By complying with our quality policy"Continue to pursue excellent quality, offer the best products and services in order to realize customer needs and satisfaction", all along we strive for providing exceelent products and service to meet and exceed our cusotmer's need. Nia Fiber constantly works with modern quality management methods to ensure the whole service procedure in implemented flexibly and efficiently.
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
