Payment & Shipping Terms:
|Brand Name:||Nia Fiber||Model Number:||12 Core Fiber Optic Pigtail|
|Jacket:||PVC||Connector:||Sc Lc Fc St|
|Length:||1m, 2m, 3m, Or Customized||Cores:||6/8/12/24/48 Cores Optional|
|Polishing:||PC, UPC, APC||Durability(1/Matings):||≥500|

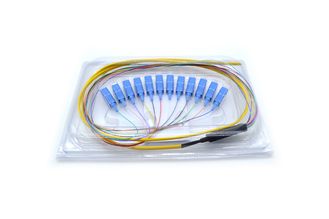

Professional manufactory of LC fiber optic Ribbon Pigtail
100% tested before delivery.
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
1. FC, SC, ST, LC
2.4/6/8/12/24/48 Cores Optional
3. SM or MM
4.0.9mm or 2.0mm
4/ 6/ 8/ 12/ 24/ 48 fibers optional
With a fan out kit at the junction of fibers
The fiber is flat type.
Applicable connector: FC, SC, ST, LC
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm
1. Telecommunications or Data communications.
2. Computer networks.
3. CATV networks.
4. Offshore, Power Generation, Oil & Gas.
6. Active device termination.
8. Optical communication networks
9. Test equipment
|Parameter||Unit||Ribbon multi-fiber connector|
|Insertion loss (typical)||dB||≤ 0.3||≤ 0.2||≤ 0.3|
|Return loss||dB||≥ 45||≥ 50||≥ 60|
|Operating wavelength||nm||1310, 1510|
|Operating temperature||° C||-40~75|
|Storage temperature||° C||-45~85|
|Cord diameter||mm||φ 3.0, φ 2.0, φ 0.9|
|Fiber count||F||4, 6, 8, 12, 24, … fibers|
|Applicable connector||FC, SC, ST, MU, LC|
Nia Fiber views business from the customer’s perspective, sensitive to the pressures of a production environment. A good supplier is one you can depend on for quality, technical support, reliability, and fast delivery of components when you need them. We do our job so you can do yours. Quality is cost effective. Re-makes, delays and failures are expensive. Nia Fiber stocks a range of quality components to anticipate the changing needs, as well as potentialproblems, that the customer (and other vendors) might overlook. We offer support and technical expertise in both the newest and existing technologies. Our aim is to make the business part easy.
Nia Fiber works hard to be part of your success. We do business only with suppliers committed to supporting their products and the fiber professionals who use them, and we have long term relationships with these suppliers.
Q1. How to shipping ? Is there cheap shipping cost to import to our country ?
A1 : The best choice is shipping By Sea . Because network cable is very heavy , it's too expensive by air .
By Sea : If you have freight forwarder , they can handle shipping for you . If you don't have it , we can provide the cheapest shipping cost to you .Or send our freight forwarder informaitons to you contact directly .
By Air : You can try to contact with DHL,Fedex,UPS express etc. after got weight and CBM from us . But it's more cheaper by China express agent ,you can contact with our sales to get the cheapest freight cost .
Q2. How to know recycle and new jacket materials ?
A2 : Except for conductor price , the jacket materials is the main factors affecting price . Some supplier price is crazy , because they use recycle materials in production . How to make out ?
Recycle material : The jacket will have bubble , especially tenacity is very bad , it's easy to tear . So the cable lifetime is short , and fire retardant, cold resistance is very bad .
New material : Tenacity is very good , it's hard to tear . And with good fire retardant, cold resistance .
Q3. Can you make OEM ? What about packing box ?
A3 : Definitely , our main business is make OEM order .
Cable Marking/Printing : It can be marking your brand or any printing that you want , except for international famous brand .
PE bag packing designs : If you want make your own brand PE bag designs, you must meet Box factory MOQ 20000 pcs at least, and the new mould charges will depend on the designs.
Outer Carton : We will support you free to make your own brand carton.
If you have box designs, just send it to us . If not , we have professional designers to make becautiful custom-made box designs for you.
Q4. What about the after-sales sevice ?
A4 : Our cable will provide free change for new if there is any quality problem in your order.
