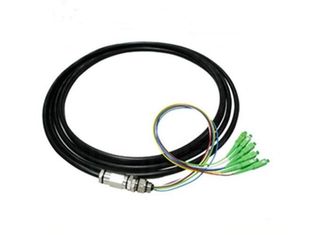

6 Core SC / APC Fiber Optical Pigtail Waterproof , Outdoor SM 9 / 125 G652D Fiber Cable
Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.
Nia Fiber provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.
1. Features:
1. Waterproof Fiber Cable
2. Waterproof Pigtail
3. With2, 4, 8, 12 fiber cores
4. LC, SC, FC, ST, MTRJ, MU, E2000
5. Waterproof, suitable for adverse outdoor environment
6. Compliant with: IEC, JIS, Telcordia
2. Applications:
1. Telecommunications or Data communications
2. Telecommunications, Military industry, Medical,
3. CATV, LAN, MAN, WAN, Test & Measurement
4. Systems Integration for Railway, Metro and Access Network
5. Fiber to the Indoor (FTTX) Test
6. Water proof cables includes 4c, 6c,8c; SM, MM,ST,SC,LC,DIN,MTRJ/D4/MU/E2000, Polishin
3. Specifications:
| SPECIFICATION: fiber optic pigtails |
| Connector Type |
LC/FC/ST/SC Waterproof Pigtail |
| Fiber Type |
Single-Mode |
| Cable Diameter |
9.8 ,11.8 |
| Insertion Loss |
PC≤0.20dB UPC≤0.20dB APC≤0.30dB |
| Return Loss |
PC≥40dB UPC≥50dB APC≥60dB |
| Working Condition |
-40℃ to +75℃ |
| End Face Geometry |
The radius of curvature : 10-25(PC/UPC) 5-12(APC)
Apex Offset : 0-50um
Fiber height : -100 to +100nm
|
| Characteristic |
High precision alignment
Proof erosion body
Comply with ROSH
Material comply with the requirement of UL 94V-0
|
| The connector comply with the standard of NTT/TELCORDIA/IEC/ITU |
| G.652 |
G.655 |
50/125μm |
62.5/125μm |
| Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| (+20°C) |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| |
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
| |
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
| @1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
4. FAQ:
1. What is your quality control?
-Quality is our soul and culture.We have 100%strict inspection and testing before shipment.We will return the money to you if there is quality problem.
2. Can you accept small order?
-Yes,small order is available in our company.We support new project of our customers as we know business is always from small to big.
Your sucess is my business.
3. Can I order samples before placing the bulk order?
-Yes,samples is certainly for your test before the bulk order.It is normal process,we always deal with other clients.
However,we will charge for a small amount of deposit in case the investment on new samples.But please donot worry,the sample deposit will refund to you when bulk order fixed.
4. What is the lead time for samples?
-About sample making,it usually takes 7-15days include testing to make sure its excellent.
If urgently,please kindly let us know,we will do our best to work overtime to speed up it.
5. Can you supply customized products and logo?
-Yes,of course we can.We supply OEM&ODM service.You can send us your drawing.
You have the idea,we turn it into excellent product for you.
5. Nia Fiber Service:
Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry,our commissioners will promptly get in touch with the customers.
After Sale Service:
Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test,we will replace it for you.We are equipped with the good after service department and never escape our responsibility.
