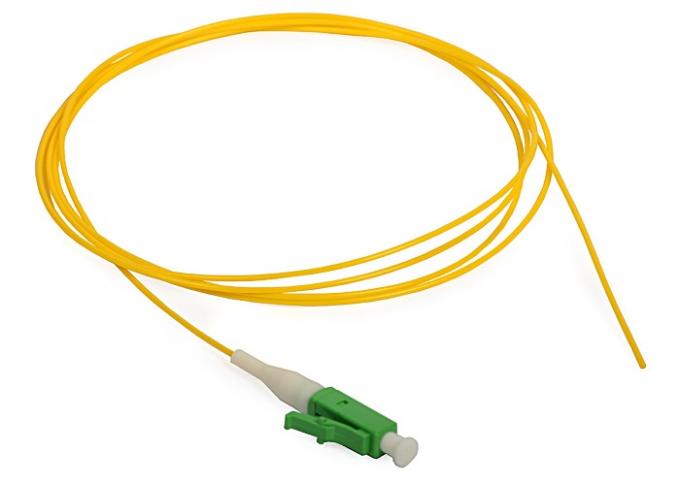

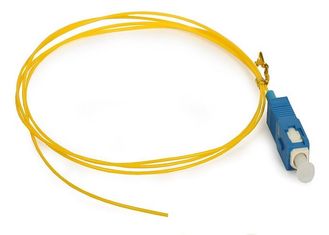

Yellow SM Pigtail Fiber Optic Cable G652D Simplex 0.9 / 2.0mm LSZH For CATV Systems
Singlemode pigtail is yellow or white, 1310Nm and 1550Nm, transmission distance 10km and 40km respectively.
1. Features:
Low insertion loss, high return loss
General use waterproof, adapt for outdoor hard environment
Easy to install, high reliability

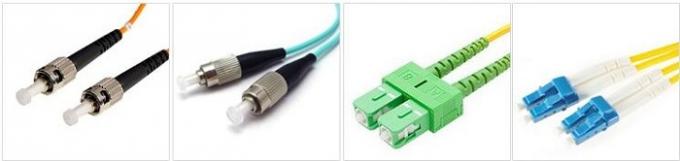

FC SC ST LC MU connectors are available
2, 4, 6, 8 and 12 cores are available
2. Applications:
Telecommunication networks:LAN access net
Testing equipment
Optic fiber CATV systems
FTTH
3. Specifications:
| Parameter |
| Item |
Mode Type |
PC |
SPC |
UPC |
APC |
| Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.15dB |
| MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
| Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
| MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
| Repetition Test |
Additional Loss≤0.1dB,Return Loss Variability<5dB |
| Temperature Stability('-40°C~85°C) |
Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature |
-40°C+~75°C |
| Storage Temperature |
-40°C+~85°C |
| -Option for Cable Diameters:0.9mm , 2.0mm ,3.0mm & others |
| -Type:simplex and duplex |
| -Material Type: PVC , Hytrel , LSZH , OFNP , OFNR |
| 3D PARAMETERS |
| Specifcation |
Radius Of Curvature |
Apex Offset |
Fiber Undercut and Protrusion |
| Factory Standard |
PC:10~25mm/APC:5~12mm |
< 50um, ROC*a(a=Offset Angle, a≤0.2°) |
-50nm~+50nm |
| IEC Standard |
PC:10~25mm/APC:5~12mm |
|
-0.02R³+1.3R²-32R+325 ~+50nm |
| GR-326-Core Standard |
PC:7~25mm/APC:5~12mm |
|
-125nm~+50nm |
|
4. Ordering Information
|
| FOP |
Type |
Singlemode(9/125) |
Multimode |
| Connector |
Connector Type(A) |
SC ,FC ,ST,FC,MU ,MTRJ ,Others |
| Polishing Type(A) |
UPC/APC |
UPC |
UPC |
UPC |
| Connector Type(B) |
SC ,FC,ST ,FC ,MU,MTRJ,Others |
| Polishing Type(B) |
UPC/APC |
UPC |
UPC |
UPC |
| Cable |
Cable Fiber Type |
G652/G655/G657 |
OM1(62.5/125) |
OM2(50/125) |
OM3/OM4(50/125) |
| Cable Length |
0.1meter to 999meter |
| Cable Type |
simplex/duplex |
| Cable OD |
0.9mm, 2.0mm, 3.0mm |
