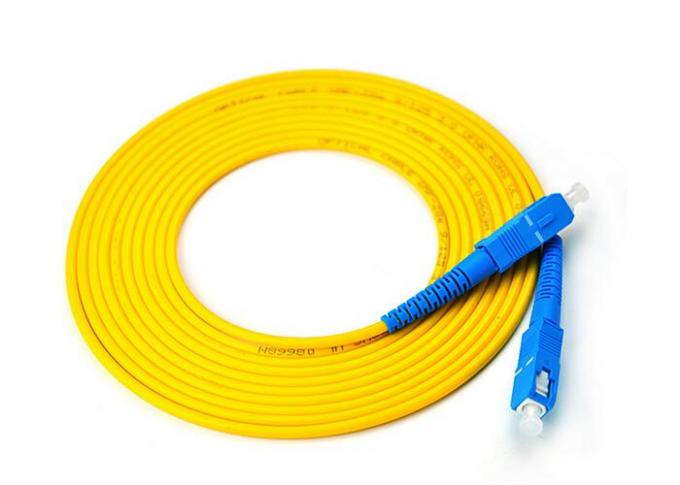

SC Fiber Optic Patch Cord Single Mode G652D 9 / 125 Fiber Optic Cable For FTTX System
1. Features:
1. Complying with IEC, YD-T826/1996, NTT, YD/T826&YD/T895&YD/T896 standard.
2. Low insertion loss, high return loss
3. Small, light, high dense connection
4. Standard exact plastic material
5. High credibility and stability
6. Good in repeatability and exchangeability
2. Applications:
1. Local Area Network
2. Wide Area Network
3. CATV,LAN,MAN WAN Network
4. FTTX System
5. Test Instruments
3. Specifications:
| Parameter |
Unit |
FC, SC, LC/ Armoured fiber patch cord |
ST, MU |
MT-RJ, MPO |
E2000 |
| SM |
MM |
SM |
MM |
SM |
MM |
SM |
| PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
| Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
| Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
| Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
| Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
| Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
| Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
| Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
| Cable diameter |
mm |
Φ3.0, Φ2.0, Φ0.9 |
Φ3.0, Φ2.0, Φ0.9 |
Φ3.0, Φ2.0, Φ0.9 |
φ3.0, φ2.0, φ0.9 |
