Telecom SM Fiber Optic Patch Cord Single Length Customized With SC - SC Connector

I'm Online Chat Now

Telecom SM Fiber Optic Patch Cord Single Length Customized With SC - SC Connector

China Telecom SM Fiber Optic Patch Cord Single Length Customized With SC - SC Connector supplier
Telecom SM Fiber Optic Patch Cord Single Length Customized With SC - SC Connector supplier Telecom SM Fiber Optic Patch Cord Single Length Customized With SC - SC Connector supplier

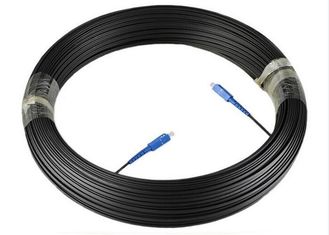

Large Image :  Telecom SM Fiber Optic Patch Cord Single Length Customized With SC - SC Connector

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: Rohs, IS9001:2008
Model Number: SC Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1pc pp bag
Delivery Time: 3days for samples, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,Paypal, D/A, D/P
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Cable Diameter: 3.0*2.0mm Return Loss: ≥45dB
Insertion Loss: ≤0.2 (max≤0.3)dB Insert-Pull Test: 1000 Times
Cable Jaket: PVC,LSZH Repeatability(dB): ≤0.1

Telecom SM Fiber Optic Patch Cord Single Length Customized With SC - SC Connector



SC/UPC-SC/UPC G657A Fiber Cable 1-1000M



1. Features:



1. Complying with IEC, YD-T826/1996, NTT, YD/T826&YD/T895&YD/T896 standard.
2. Low insertion loss, high return loss
3. Small, light, high dense connection
4. Standard exact plastic material
5. High credibility and stability
6. Good in repeatability and exchangeability



2. Applications:



1. CATV,IPTV

2. Telecommunication networks

3. Active device termination

4. Metro

5. Local Area networks(LANs)

6. Data processing networks

7. Test equipment

8. Premise installations

9. Wide Area networks



3. Specifications:





Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9



4. Order information:



1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, UPC, APC
3 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4 Cable Quantity: “2C” means two cores
5 Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm
6 Cable Length: 1, 2, 3 meter or customized
7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

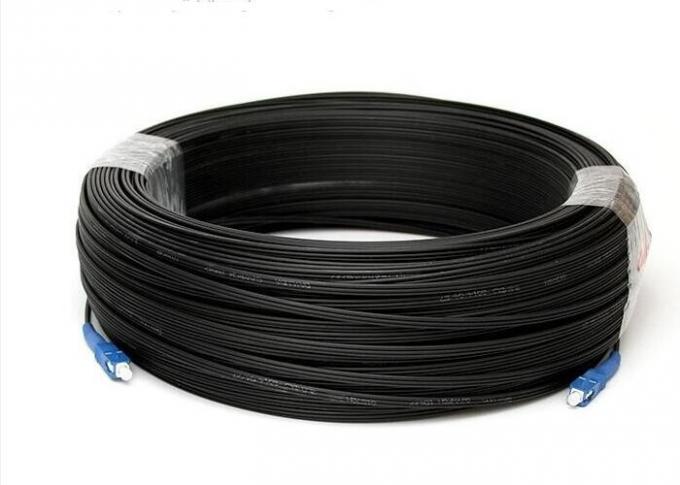

Telecom SM Fiber Optic Patch Cord Single Length Customized With SC - SC Connector





5. Nia Fiber Services:



Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry,our commissioners will promptly get in touch with the customers.



After Sale Service:
Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test,we will replace it for you.We are equipped with the good after service department and never escape our responsibility.



6. FAQ:



1.Do you provide free samples?

yes, we can supply some free samples , the buyer should bear the shipping cost.



2. Can we become your distributor or agency in our area?

yes, it is possible if we do not have an agency or distributor in your area. The best way to start the business and approve your good intentions through several regular orders over a period. we will support very good products to our distributor including samples, price and other supports. please contact with our sales manager for more details.



3.Can you supply OEM products under our brand?

yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.



7. Please let us know what we can do for you in FTTH field.



mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.



We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
