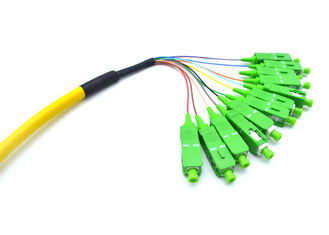

CATV / ODF SM SC Fiber Optic Pigtail 12 Core Bundle With Zirconium Dioxide Ferrule
Fiber optic pigtail , also named pigtail cables, is a short optical fiber permanently attached to a source, detector, or other fiber optical device at one end and an optical connector at the other. there are single mode & multimode and bunchy & ribbon optical fiber pigtails. It is used to interconnect transmission equipment to the fiber optic patch panel. The pigtail supports longer distance with lower loss for gigabit Ethernet, fiber channel and internet protocol applications. It is specifically designed for use with today's narrower aperture components.
1. Features:
Options: multimode and single-mode
Wavelength: multimode, 850nm; Single-mode, 1310nm and 1550nm
Transmission distance:Multimode: 500m, for short-distance interconnection
Single-mode: 10Km and 40Km, for long-distance interconnection
Color: Single-mode pigtail is yellow, multimode is orange
Cable diameter: 3.0mm, 2.0mm, 0.9mm
Connector types: FC, SC, LC, ST, MU,etc.
Ferrule end-face: PC, APC simplex and duplex are available
Supplier of China Telecom, China Mobile, China Unicom
2. Applications:
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
3. Specifications:
| Connector type |
SC; FC; LC; ST; MTRJ; MU; E2000; MPO; SMA; FDDI; DIN4; D4 |
| Ferrule End face |
PC; UPC; APC |
| Om type |
9/125UM; 50/125UM; 62.5/125UM |
| Cable quantity |
Simplex; Double; 6cores; 12cores; 16cores; 24cores; 36cores; 48cores |
| Cable Diameter |
Φ3.0MM; Φ2.0MM; Φ0.9MM |
| Cable length |
1M; 2M; 3M; 4M etc., can be customized |
| Cable type |
PVC; LSZH; OM3; OFNR; OFNP; Plenum; Armored |
4. Ordering Information
| Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Length |
Color |
|
0.9mm
2.0mm
3.0mm
|
FC
LC
SC
ST
MU
D4
MTRJ
MPO
DIN
E2000
|
9/125um SM
50/125um MM
62.5/125um MM
OM3
OM4
|
Simplex
Duplex
Multi-fiber
Ribbon
|
PC
APC
UPC
|
1m
2m
3m
4m
5m
......
Customized
|
Aqua
Black
Biege
Blue
Gray
Orange
White
Yellow
|
5. Nia Fiber Service:
As the specialists in the field of marketing,process development, design, engineering and project implementation, Nia Fiber focuses on continuous research and development to yield a range of products and service that guarantees technologically advanced solutions.
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
