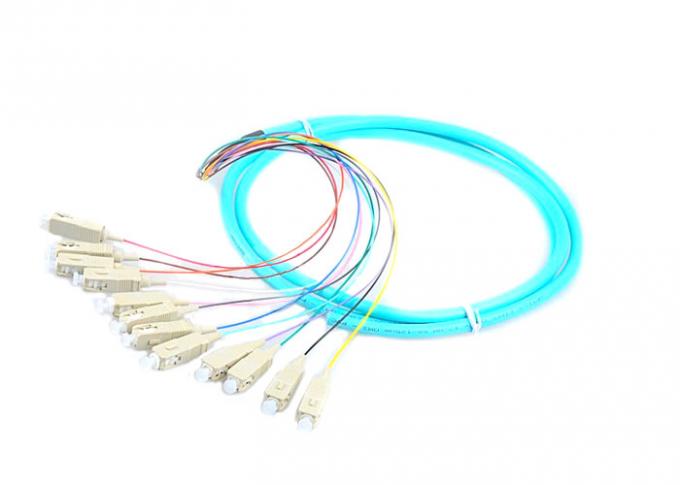

50/125 OM4 OM3 Fiber Optic Pigtail 12Fibers SC Fiber Optic Jumper 0.9mm PVC Jacket

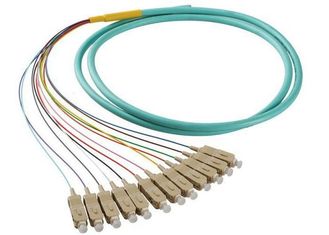

Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The bunch fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
1. Features:
ANSI, Bellcore, TIA/EIA 568C, IEC Strandards
Low Insertion Loss and High Retum Loss
Excellent Repeatability and Changeability
Simplex and Duplex Available
Ceramic Ferrules
Riser, Plenum & LSZH cable option
Optical performance 100% factory tested
2. Applications:
Telecommunication Networks
CATV Networks
Active Device Termination
Local Area Networks
3. Specifications:
| Parameter |
Single Mode |
Multi Mode |
| Basic |
Fiber connector |
FC, SC, LC, ST, MU, MTRJ, MPO |
| Ferrule End-face |
PC |
UPC |
APC |
UPC |
| Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.3bB |
| Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
| Ceramic Ferrule Specification |
125.5um concentricity deviations:<=1um |
127um concentricity deviations:<=3um |
| Suitable Fiber |
9/125um |
50/125um,62.5/125um |
| End-face Geometry |
Radius of Curvature |
7~25mm |
5~12mm |
N/A |
| Fiber Protrusion |
≤50nm |
≤100nm |
N/A |
| Fiber Under Cut |
≤100nm |
≤100nm |
N/A |
| Apex offset |
≤50um |
| Mechanical |
Exchangeability |
≤0.2dB |
| Salt Spray |
≤0.1dB |
| Drop |
≤0.2dB(1.5M, 5 drops) |
| Vibration |
IL ≤0.2dB(550Hz, 1.5mm) |
| Repeatability |
≤ 0.1dB(1000 times) |
| Durability |
> 1000 times |
| Operating Temperature |
-40°C ~ +85°C |
4. Ordering Information:
| Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Length |
Color |
|
0.9mm
2.0mm
3.0mm
|
FC
LC
SC
ST
MU
D4
MTRJ
MPO
DIN
E2000
|
9/125um SM
50/125um MM
62.5/125um MM
OM3
OM4
|
Simplex
Duplex
Multi-fiber
Ribbon
|
PC
APC
UPC
|
1m
2m
3m
4m
5m
......
Customized
|
Aqua
Black
Biege
Blue
Gray
Orange
White
Yellow
|
