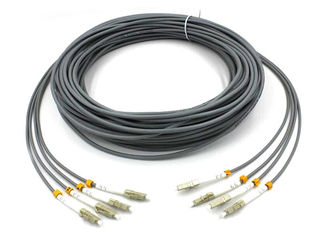

LC - LC Multimode Fiber Patch Cord , 6 Core Gray Armored Patch Cable For FTTH

I'm Online Chat Now

LC - LC Multimode Fiber Patch Cord , 6 Core Gray Armored Patch Cable For FTTH

China LC - LC Multimode Fiber Patch Cord , 6 Core Gray Armored Patch Cable For FTTH supplier

Large Image :  LC - LC Multimode Fiber Patch Cord , 6 Core Gray Armored Patch Cable For FTTH

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: Rohs, IS9001:2008
Model Number: Armored Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1pc pp bag
Delivery Time: 3days for samples, 7-15days for bulk order
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Cable Length: 1/2/3/10/30 Or Customized Return Loss: ≥35dB
Insertion Loss: ≤0.2dB Insert-Pull Test: 1000 Times
Fiber: G652D G657A OM1 OM4 Working Tempertures: -40℃~ +85℃

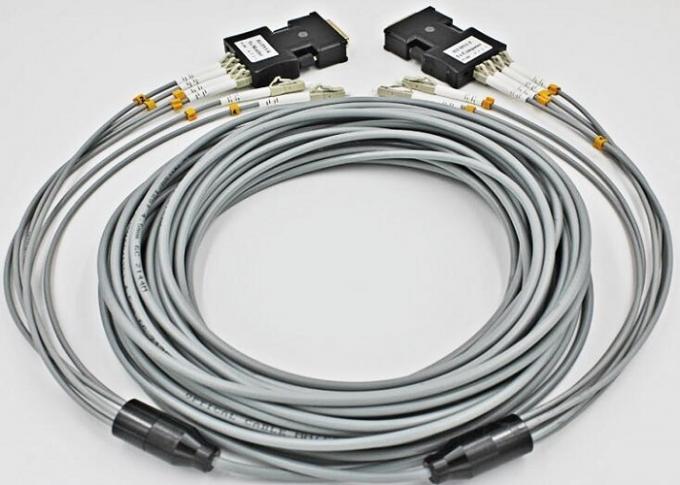

LC - LC Multimode Fiber Patch Cord , 6 Core Gray Armored Patch Cable For FTTH



Ratproof, Compressive Tensile Single, Multimode FC,SC,LC,ST armored patch cord available



10 Gigabit  transmission bandwidth in line with international telecommunications standards



tensile strength: 147N



1. Features:



Protection of stainless steel tube with small caliber

Avoid the damage of torsion

High tensile coefficient and stress coefficient

Convenient for application, highly security

Application without damage to cable

Manufacture without damage to cable

Cost cutting for aintenance



2. Applications:



Machine room

FTTH

Area network

Test equipment

National defence

FO sensor

Light communication system

Common antenna TV system



LC - LC Multimode Fiber Patch Cord , 6 Core Gray Armored Patch Cable For FTTH



3. Specifications:





Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9



4. Order information:



1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, UPC, APC
3 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4 Cable Quantity: “2C” means two cores
5 Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm
6 Cable Length: 1, 2, 3 meter or customized
7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum





5. Nia Fiber Services:



--Advantage we have:

A: Experienced fiber optic product supplier

B: professional technology term and sales department for your service.

C: Alibaba golden supplier, factory recognized by CE

D:All the question will be dealed within 24 hours.



--Benefit you get:

A: stable quality- coming from good material and technology

B: lower price: not cheapest but the lowest at the same quality

C: good service: satisfactory service before and after sale.

D: delivery time: 20-30 days, delivery product ASAP after the confirmation.



mailto:info@niafiber.com Technology Co., Limited has passed the international quality certification: ISO 9001. We not only have top-ranking quality control departments but also establish complete and reliable quality assurance system. We carry out the system in all procedures and processes of production and management. Moreover, we adopt advanced quality control equipment and first-rate expert team, making sure best products' quality to customers in the whole world.





6. Please let us know what we can do for you in FTTH field.



mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.



We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
