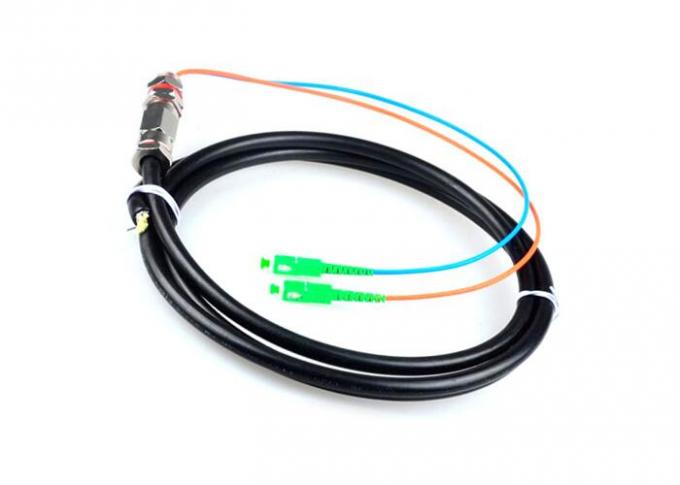

5M Waterproof SC / APC Pigtail , G652D 2 Core Single Mode Fiber Optic Cable
Nia Fiber offers a range of pigtails designed and manufactured for demanding LAN and Telecom applications.
Subunit: 0.9mm, 2.0mm or 3.0mm according to clients' need, it can be also made into duplex type
Fiber: singlemode OS1/OS2, G657, G652(9/125um), OM1(62.5/125um), OM2, OM3 and OM4(50/125um)
1. Quick Detail:
Nam: SC waterproof fiber pigtail
Cable jacket: PVC, LSZH, OFNP, OFNR
Cable length: 1m, 2m, 3m, 5m....customized
Cable type: waterproof fiber cable
Cable core: 2core 4core 6core 8core....optional
Cable fan-out length: 0.5M or 1M
2. Features:
With waterproof connnectors
Serialized & Individual Test Records
Guaranteed Zero Defects
Meets ROHS and Bell core GR 326-core standards
Custom Configurations Available at No Extra Charge
Available in fiber bunch, ribbon fan-out, pigtail available
3. Applications:
Premise Installations
Active Device Termination
Industrial, medical & military
Video transmission , Data transmission
Telecommunication and Data processing Networks
FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
Systems Integration for Long Haul, Metro and Access Network
4. Specifications:
| SPECIFICATION: fiber optic pigtails |
| Connector Type |
LC/FC/ST/SC Waterproof Pigtail |
| Fiber Type |
Single-Mode |
| Cable Diameter |
9.8 ,11.8 |
| Insertion Loss |
PC≤0.20dB UPC≤0.20dB APC≤0.30dB |
| Return Loss |
PC≥40dB UPC≥50dB APC≥60dB |
| Working Condition |
-40℃ to +75℃ |
| End Face Geometry |
The radius of curvature : 10-25(PC/UPC) 5-12(APC)
Apex Offset : 0-50um
Fiber height : -100 to +100nm
|
| Characteristic |
High precision alignment
Proof erosion body
Comply with ROSH
Material comply with the requirement of UL 94V-0
|
| The connector comply with the standard of NTT/TELCORDIA/IEC/ITU |
| G.652 |
G.655 |
50/125μm |
62.5/125μm |
| Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| (+20°C) |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| |
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
| |
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
| @1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
