SC / APC Optical Fiber Pigtail Single Mode Simplex 2 Core 50M With LSZH Jacket

I'm Online Chat Now

SC / APC Optical Fiber Pigtail Single Mode Simplex 2 Core 50M With LSZH Jacket

China SC / APC Optical Fiber Pigtail Single Mode Simplex 2 Core 50M With LSZH Jacket supplier

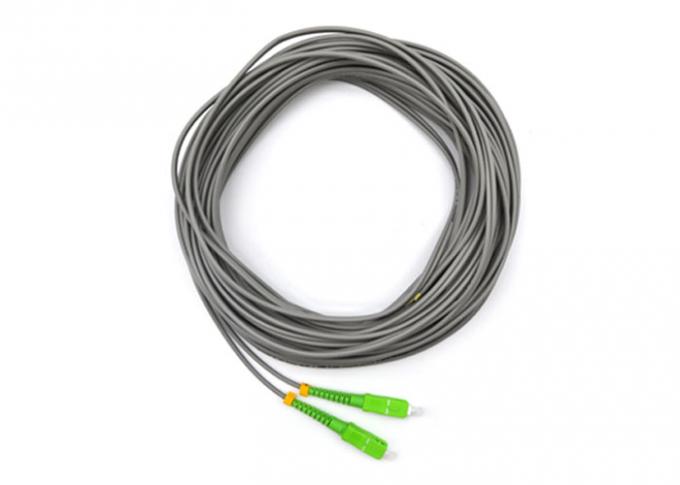

Large Image :  SC / APC Optical Fiber Pigtail Single Mode Simplex 2 Core 50M With LSZH Jacket

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: Rohs SGS ISO9001:2008
Model Number: SC/APC Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: Plastic bag + standard carton.
Delivery Time: 3days for samples, 7-15days for bulk order
Payment Terms: Paypal;, L/C, T/T, Western Union
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Fiber Brand: YOFC, Corning Cable Dia: 0.9mm/2.0mm/3.0mm
Return Loss: >=55dB Insert Loss: UPC<=0.2dB
Jacket: PVC, LSZH,OFNP Cable Color: Yellow, Orange, White,Blue,Green, Red...

SC / APC Fiber Optic Pigtail Single Mode Simplex 2 Core 50M With LSZH Jacket



Fiber optic patch cord is available in both singlemode and multimode versions.

Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.

These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

1. Features:

   1. Low insertion loss and back reflection loss
   2. Ferrule end surface pre-domed
   3. Excellent mechanical endurance
   4. Good in repeatability
   5. Good in exchange
   6. Green Production, CE, RoHS Standard


2. Applications:

  1. Telecommunication networks
  2. Fiber optic communication networks
  3. CATV, LAN, MAN, WAN, Test &Measurement
  4. Optical access network

 water proof cables includes 4c, 6c,8c; SM, MM,ST,SC,LC,DIN,MTRJ/D4/MU/E2000, Polishin

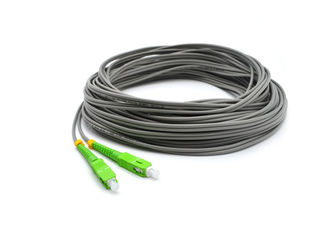

SC / APC Optical Fiber Pigtail Single Mode Simplex 2 Core 50M With LSZH Jacket
3. Specifications:



Parameter
Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥50dB ≥60dB ≥35dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -20℃~+70℃
Storage Temperature -40℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326
Specification
Fiber type Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2,G657B2,G657B3
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4
Fiber brand YOFC, Corning, OFS...
Connector type SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN
Cord type Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter 0.9mm, 2.0mm, 3.0mm....
Cable jacket PVC, LSZH, OFNR, OFNP
Length(M) 0.3m,1m,2m,5m,10m,25m,50m,100m
Cable Type Cable Size (mm) Cable Weight kg/km Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N)

Bending Radius

Static/Dynamic (mm)

GJA-II-YX2-02Xn 8.9±0.5 58.1 200/660 300/1000 20D/10D
MPC-G-YX2-04Xn 8.9±0.5 58.3 200/660 300/1000 20D/10D
MPC-G-YX2-06Xn 9.8±0.5 73 200/660 300/1000 20D/10D
MPC- G-YX2-08Xn 10.6±0.5 95.7 200/660 300/1000 20D/10D
MPC- G-YX2-12Xn 13.4±0.5 155.2 200/660 300/1000 20D/10D





G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm     ≤3.0 dB/km ≤3.0 dB/km
(+20°C) @1300nm     ≤1.0 dB/km ≤1.0 dB/km
  @1310nm ≤0.36 dB/km ≤0.40 dB/km
  @1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km






4. Nia Fiber Service:


  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.
  4. Our patch cord warranty period is one year.





5. Why Choose Nia Fiber?



Quality system of ISO900,CE,FCC,ROHS registration
Manufacture system
R&D system
Purchasing system
Prompt delivery and remarkable services
Reasonable prices
Accept orders according to customer's demands
Rich experience of OEM & ODM co-operation
Shipment,payment and delivery



mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.


We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
