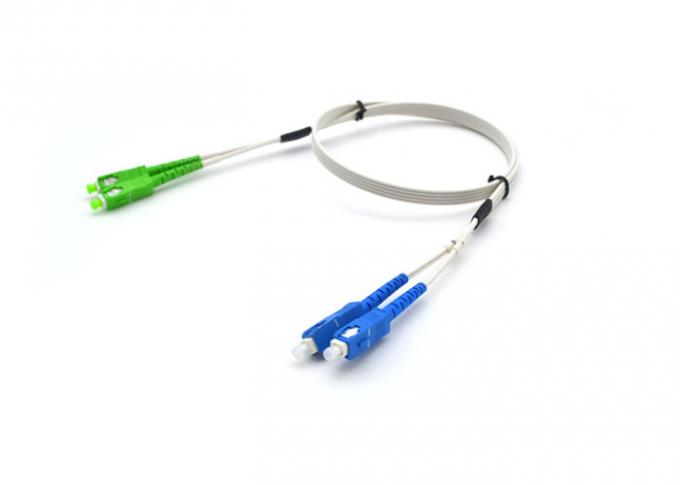

SC / APC - SC / UPC Fiber Optic Patch Cord DX SM Waterproof Fiber Optic Pigtail Cables
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
1. Features:
Superior qualified standard PC, APC, UPC, SPC polishing;
100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional;
Single mode (9125) or multi mode (50125 or 62.5125) fiber available;
FC, SC, LC, MU, ST, MT-RJ, etc connector
Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core standards;
Customized specifications welcomed.
2. Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
3. Specifications:
| Parameter |
| Mode |
Single mode |
Multimode |
| Polish |
UPC |
APC |
PC |
| Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.2dB |
| Return Loss |
≥50dB |
≥60dB |
≥35dB |
| Test Wavelength |
1310/1550nm |
850/1310nm |
| Durability(500 Matings) |
≤0.2dB |
| Operating Temperature |
-20℃~+70℃ |
| Storage Temperature |
-40℃~+85℃ |
| Fire Resistant |
IEC 60794-2-30 |
| Standards-Compliant |
ROHS,IEC and GR-326 |
| Specification |
| Fiber type |
Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2,G657B2,G657B3 |
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4 |
| Fiber brand |
YOFC, Corning, OFS... |
| Connector type |
SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN |
| Cord type |
Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores... |
| Cable diameter |
0.9mm, 2.0mm, 3.0mm.... |
| Cable jacket |
PVC, LSZH, OFNR, OFNP |
| Length(M) |
0.3m,1m,2m,5m,10m,25m,50m,100m |
| Cable Type |
Cable Size (mm) |
Cable Weight kg/km |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N) |
Bending Radius
Static/Dynamic (mm)
|
| GJA-II-YX2-02Xn |
8.9±0.5 |
58.1 |
200/660 |
300/1000 |
20D/10D |
| MPC-G-YX2-04Xn |
8.9±0.5 |
58.3 |
200/660 |
300/1000 |
20D/10D |
| MPC-G-YX2-06Xn |
9.8±0.5 |
73 |
200/660 |
300/1000 |
20D/10D |
| MPC- G-YX2-08Xn |
10.6±0.5 |
95.7 |
200/660 |
300/1000 |
20D/10D |
| MPC- G-YX2-12Xn |
13.4±0.5 |
155.2 |
200/660 |
300/1000 |
20D/10D |
| G.652 |
G.655 |
50/125μm |
62.5/125μm |
| Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
| (+20°C) |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
| |
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
| |
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
| @1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
4. Nia Fiber Service:
Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry,our commissioners will promptly get in touch with the customers.
After Sale Service:
Nia Fiber comes with a one year limited warranty from the date of the purchase by the clients. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. we could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test,we will replace it for you.We are equipped with the good after service department and never escape our responsibility.
5. Why Choose Nia Fiber?
Nia Fiber always foucuses on reliable quality development. By complying with our qulity policy"Continue to pursue excellent quality, offer the best products and serices in order to realize customer needs and satisfaction", all along we strive for providing excellent products and service to meet and exceed our customer's need. Nia Fiber constantly works with modern quality management methods to ensure the whole service procedure is implemented flexibly and efficiently.
Nia Fiber has established complete quality,environment and occupational health and safety assurance system to design, produce and supply its range of fiber cable and FTTH products.
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
