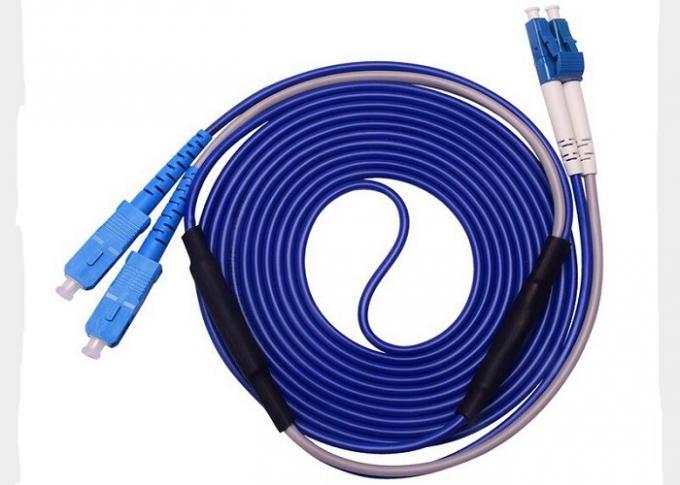

SC / UPC - LC / UPC Fiber Optic Patch Cord 3M SM Fiber Optic Duplex Cable For FTTH
1. Features:
Protection of stainless steel tube with small caliber
Avoid the damage of torsion
High tensile coefficient and stress coefficient
Convenient for application, highly security
Application without damage to cable
Manufacture without damage to cable
Cost cutting for aintenance
2. Applications:
Buildings without protective cabling
Machine room
FTTH
Network Area
Equipment diagnosis
National defense
FO sensor
Light communication system
Common antenna TV system
Optical fiber communication system
3. Specifications:
| Parameter |
Unit |
FC, SC, LC/ Armoured fiber patch cord |
ST, MU |
MT-RJ, MPO |
E2000 |
| SM |
MM |
SM |
MM |
SM |
MM |
SM |
| PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
| Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
| Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
| Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
| Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
| Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
| Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
| Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
| Cable diameter |
mm |
Φ3.0, Φ2.0, Φ0.9 |
Φ3.0, Φ2.0, Φ0.9 |
Φ3.0, Φ2.0, Φ0.9 |
φ3.0, φ2.0, φ0.9 |
4. Order information:
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: “2C” means two cores
5. Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
5. Nia Fiber Services:
--Advantage we have:
A: Experienced fiber optic product supplier
B: professional technology term and sales department for your service.
C: Alibaba golden supplier, factory recognized by CE
D:All the question will be dealed within 24 hours.
--Benefit you get:
A: stable quality- coming from good material and technology
B: lower price: not cheapest but the lowest at the same quality
C: good service: satisfactory service before and after sale.
D: delivery time: 20-30 days, delivery product ASAP after the confirmation.
mailto:info@niafiber.com Technology Co., Limited has passed the international quality certification: ISO 9001. We not only have top-ranking quality control departments but also establish complete and reliable quality assurance system. We carry out the system in all procedures and processes of production and management. Moreover, we adopt advanced quality control equipment and first-rate expert team, making sure best products' quality to customers in the whole world.
6. Please let us know what we can do for you in FTTH field.
Nia Fiber always focuses on reliable quality development, by compying with our qality policy"Continue to pursure excellent quality,offer the best products and servies in order to realize customer needs and satisfaction", all along we strive for providing excellent products and service to meet and exceed our customer's need. Nia Fiber constantly works with modern quality anagement methods to ensure the whole service procedure is implemented flexibly and efficiently.
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
