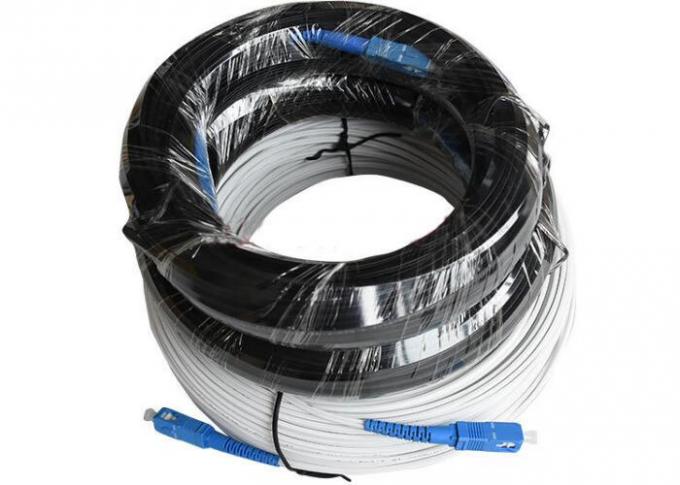

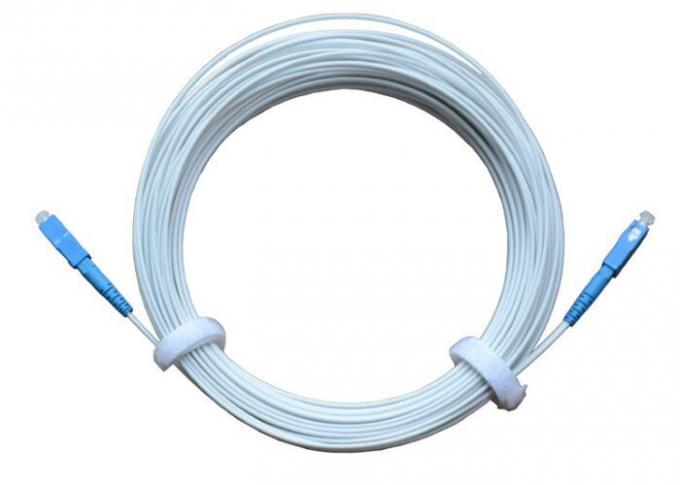

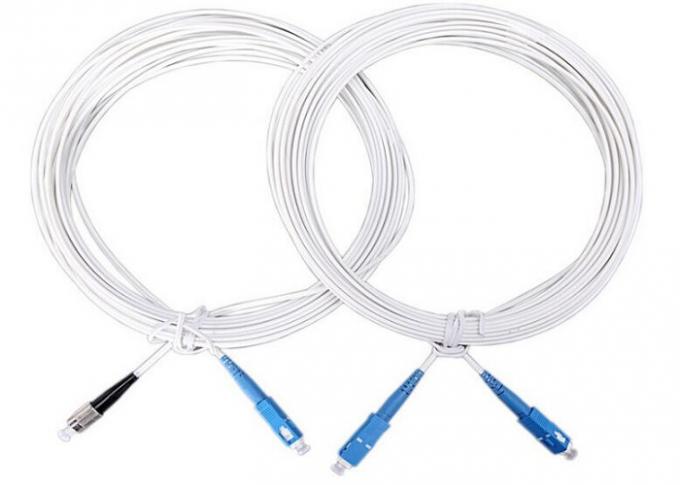

200m Outdoor Fiber Optic Patch Cord SC Flat FTTH Drop Cable With Messager
1. Description:
The optical fiber unit is positioned in the center. Two steel wired or FRP are placed at the two sides. A steel wired as the additional strength member is also applied. Then the cable has a black color and white LSZH sheath.
2. Features:
1. High bandwidth and excellent communication transmission property;
2. Two parallel FRP strength members make sure good performance of crush resistance to protect the fiber.
3. Simple structure, light weight and high performance;
4. Low smoke zero halogen and flame retardant sheath.
3. Application:
1. Optical fiber pigtail, also named
2. CATV
3. Optical fiber communication systems
4. Optical fiber data transmission
5. Building network access
4. Specifications:
| Connectors type |
SC/UPC, SC/APC |
| Cable |
FTTH Outdoor Cable 10/20/30/50/80/100/200M Length |
| Fiber Type |
G657A |
| Cable Color |
Black, White |
| Insertion loss |
≤0.3 dB |
| Return loss |
≥45dB |
| Joint endurance |
>1000Times |
| Operating Temperature |
-40℃~+60℃ |
| Storage Temperature |
-40℃~+60℃ |
| ROHS |
Meet 2002/95/EC Requirement |
5. Nia Fiber care our life.
mailto:info@niafiber.com Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
