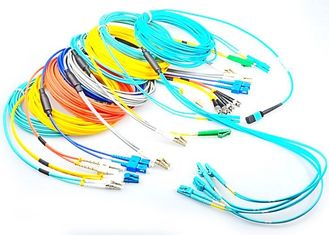

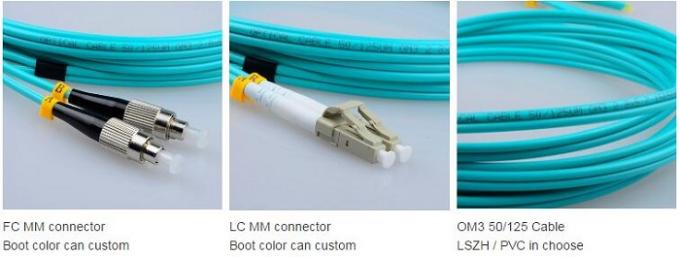

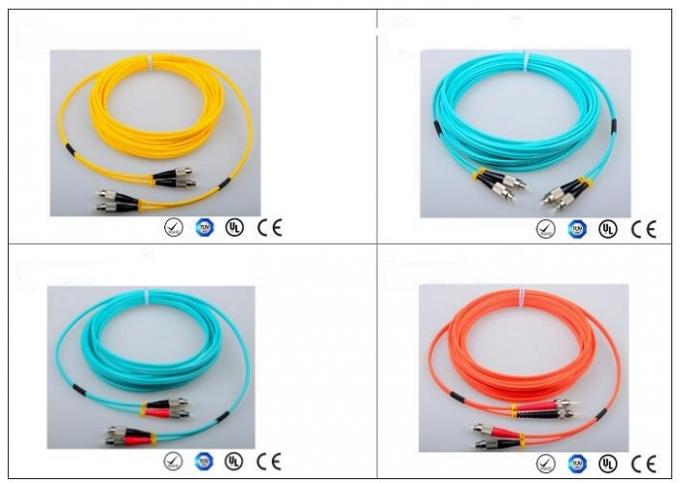

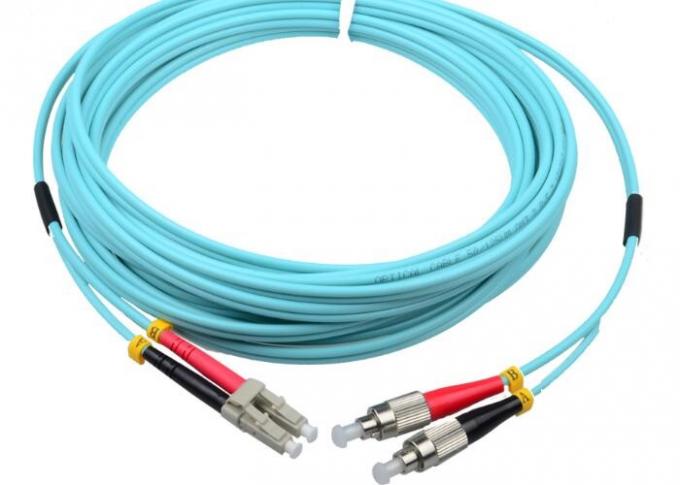

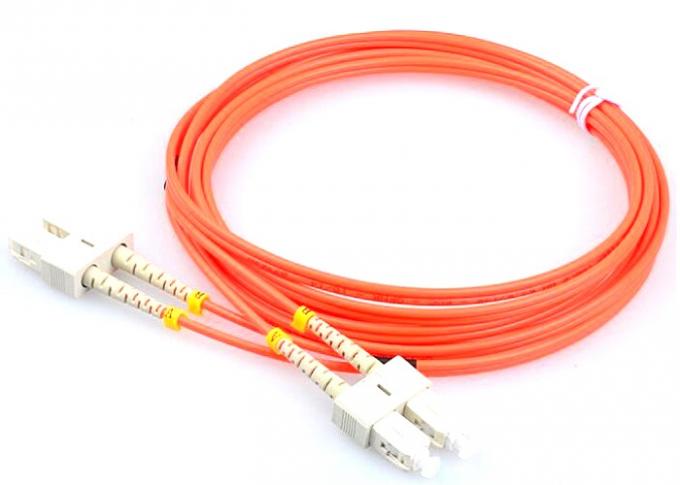

OM3 OM4 Fiber Optic Patch Cord Stability Length Customized With LC Connector

1. Specification:

1. Insertion loss:(Single-mode)PC≤0.3dB,UPC≤0.2dB APC≤0.2dB (Multi- mode):PC≤0.2dB
2. Return loss:PC≥45dB,UPC≥50dB APC≥65dB
3. Durability(1000times):≤0.2dB
4. Temperature range:-40 --- +80

2. Performance:

1. Compliance with the standard of IEC and YD-T826/1996
2. High return loss and Low insertion loss
3. Good reliability& stability
4. Three types:PC/UPC/APC
5. Simplex and Duplex cable
6. Cable diameter:Φ0.9/Φ2/Φ3

3. Application:

1. Telecommunication Networks
2. Test Equipment
3. Local Area Network
4. CATV

4. Specification:

Nia Fiber was founded in 2010 , starting with power cable and more than 6-year experiences in FTTH production, has provides range of products for Structured Cabling System ( SCS ).
Carfiber is located in Shenzhen, China with one facility around 5000 square meters. Based on high quality manpower and professional experiences in this industrials . We have the confidence and ability to design and manufacture various products for customers.
Own R&D team to improve our products according to real need from End User, your request is our goal!
Nia Fiber can be your trusted consultant to handle Data Center, Enterprise and Industrial intelligent structured cabling system.

We sincerely invite all interested buyers to visit our company and contact us directly for further information. Nia Fiber, Care you life.
