1 Core Drop Cable Fiber Optic Patch Cord 2.0mm * 3mm With Sc / Upc Connector

I'm Online Chat Now

1 Core Drop Cable Fiber Optic Patch Cord 2.0mm * 3mm With Sc / Upc Connector

China 1 Core Drop Cable Fiber Optic Patch Cord 2.0mm * 3mm With Sc / Upc Connector supplier
1 Core Drop Cable Fiber Optic Patch Cord 2.0mm * 3mm With Sc / Upc Connector supplier 1 Core Drop Cable Fiber Optic Patch Cord 2.0mm * 3mm With Sc / Upc Connector supplier 1 Core Drop Cable Fiber Optic Patch Cord 2.0mm * 3mm With Sc / Upc Connector supplier

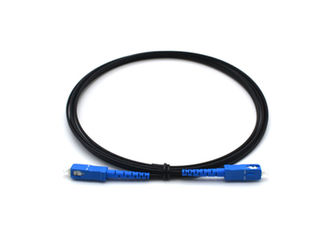

Large Image :  1 Core Drop Cable Fiber Optic Patch Cord 2.0mm * 3mm With Sc / Upc Connector

Product Details:

Place of Origin: China
Brand Name: CFO
Certification: Rohs
Model Number: CFO-Distribution Box

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: 3days for samples; 7-15days for bulk order
Delivery Time: 1pc middle box, 6pcs in one carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal;
Supply Ability: 1000pcs/day
Contact Now
Detailed Product Description
Brand Name: CFO Model Number: Patch Cord
Cable Diameter: 0.9mm/2.0mm/3.0mm Mode: Single Mode/Mulitimode
Fiber Counts: 9/125um, 50/125um,62.5/125um,ect Polishing: APC/UPC
Cable Length: 0.5/1.0/2.0/3.0/As Customer Requested Cable Jaciket: LSZH/PVC/OFNR/Special



1 core drop cable patch cord 2.0mm*3mm with sc/upc connector GJXFH/GJXH drop cable patchcord optical fiber



Feature:

1. Low insertion loss

2. High return loss

3. Great repeatability

4. High temperature stability

5. High interchangeability

6. Simplex and duplex are available



Application:

1. CATV

2. Optical fiber communication systems

3. Optical fiber data transmission

4. Building network access

5. Cabling system, ODF

6. FTTX applications



Specifications:

Connector type SC; FC; LC; ST; MTRJ; MU; E2000; MPO; SMA; FDDI; DIN4; D4
Ferrule End face PC; UPC; APC
Om type 9/125UM; 50/125UM; 62.5/125UM
Cable quantity Simplex; Double; 6cores; 12cores; 16cores; 24cores; 36cores; 48cores
Cable Diameter Φ3.0MM; Φ2.0MM; Φ0.9MM
Cable length 1M; 2M; 3M; 4M etc., can be customized
Cable type

PVC; LSZH; OM3; OFNR; OFNP; Plenum; Armored





Technical Parameters

Interface form
Core end face
Cable diameter
Single/Twin core
Single/Multi mode
FC
PC/UPC/APC
0.9/2/3
Single/Twin
Single/Multi
SC
PC/UPC/APC
0.9/2/3
Single/Twin
Single/Multi
ST
PC/UPC
0.9/2/3
Single/Twin
Single/Multi
LC
PC/UPC
0.9/2
Single/Twin
Single/Multi
MU
PC/UPC
0.9/2
Single/Twin
Single/Multi
MTRJ
PC/UPC
0.9/2
Single/Twin
Single/Multi





Fiber Optic Patch Cord FC SC ST
Fiber Connector LC MU MTRJ E2000
Item
Model
PC
UPC
APC
PC
UPC
APC
Insertion loss
SM
≤0.2dB
≤0.2dB
≤0.2dB
≤0.2dB
≤0.2dB
≤0.2dB

MM
≤0.3dB
≤0.2dB
-
≤0.3dB
≤0.2dB
-
Return loss
SM
≥45dB
≥55dB
≥65dB
≥45dB
≥50dB
≥60dB

MM
≥35dB
≥35dB
-
≥35dB
≥35dB
-
Repeatability

≤0.1dB
≤0.1dB
Interchangeability

≤0.2dB
≤0.2dB
Operating temperature

-40℃~+75℃
-40℃~+75℃
Storage temperature

-40℃~+85℃
-40℃~+85℃


1 Core Drop Cable Fiber Optic Patch Cord 2.0mm * 3mm With Sc / Upc Connector
Our Service

Nia Fiber specializes in manufacturering of FTTH products and fiber optic cables. Nia Fiber provides connectivity solutions for some of the largest distributors and OEM accounts in the world. We provide both standard and custom solutions for our customer's specific requirements.


Total Quality is the guiding principle of Nia Fiber's business life. It requires each of us, individually and in teams, to understand, anticipate, and surpass the expectations of our customers. Total Quality demands continuous improvement in all our processes, products, and services. Our success depends on our ability to learn from experience, to embrace change, and to achieve the full involvement of all our employees. The company's expertise assures that each customer will receive the highest quality of products and service on each and every product. By purchasing Nia Fiber products, our customers can be assured that they are getting components that are fully warranted.


All products can be custom manufactured to fit customer requirements.If you need something special, Nia Fiber can design and manufacture a custom fiber optic cable or cable assembly to meet your requirements.

FAQ:

Q1: Are you a factory?
A: Yes, we are a factory, we have 6 workshops, patch cord, hardware, injection moulding, painting, die making work shop.

Q2: what's your products' quality control?
A: Our tenet is "Quality first, Prestige first".
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.
3.The supporting of boss on quality control.

4.Our products have passed the CE & ROHS & ISO etc.

Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.

Q4: Could you offer the OEM service?
A: Yes, we can provide both OEM and ODM service, manufacture as per your request.

Q5. May I take a sample order
A: Yes, Professional manufacturer, 100% tested, samples are available.


Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shippment and how long does it take to arrive?
A: Goods usually be shipped by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q8. Ordering guide as follow :
Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
